Dell Latitude E6230 - Display Bezel Procedures

Installing the Smart Card Cage
1. Place the smart card cage in its compartment.
2. Tighten the screw that secures the smart card cage to the computer.
3. Install the:
a) system board
b) base chassis
c) display assembly
d) speakers
e) bluetooth module
f) heat-sink fan
g) keyboard
h) palmrest
i) base cover
j) battery
k) ExpressCard
l) SD card
4. Follow the procedures in After Working Inside Your Computer .
Removing the Display Bezel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery.

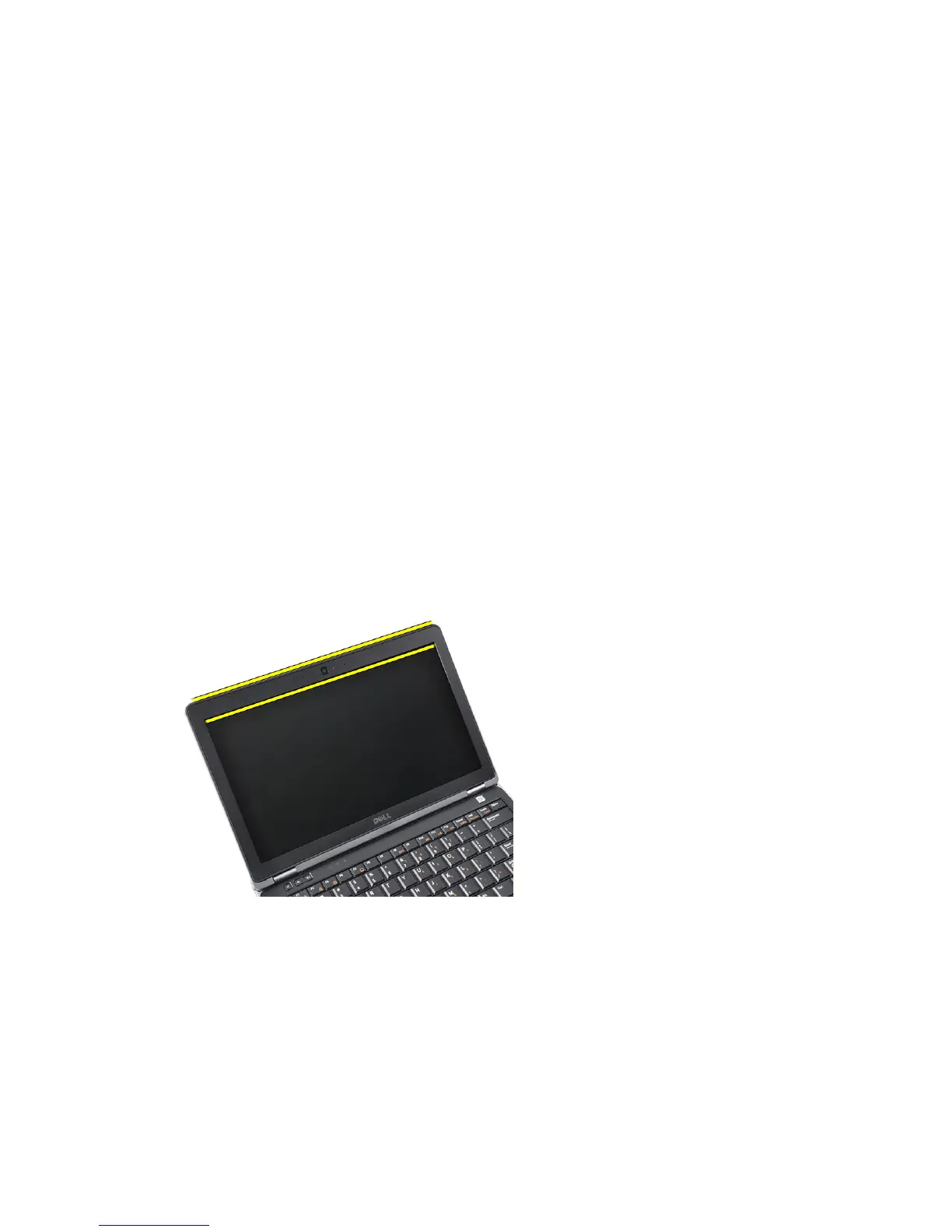

3. Pry the top edge of the display bezel.
