Dell Latitude E6230 - Installing the LVDS and Camera Cable

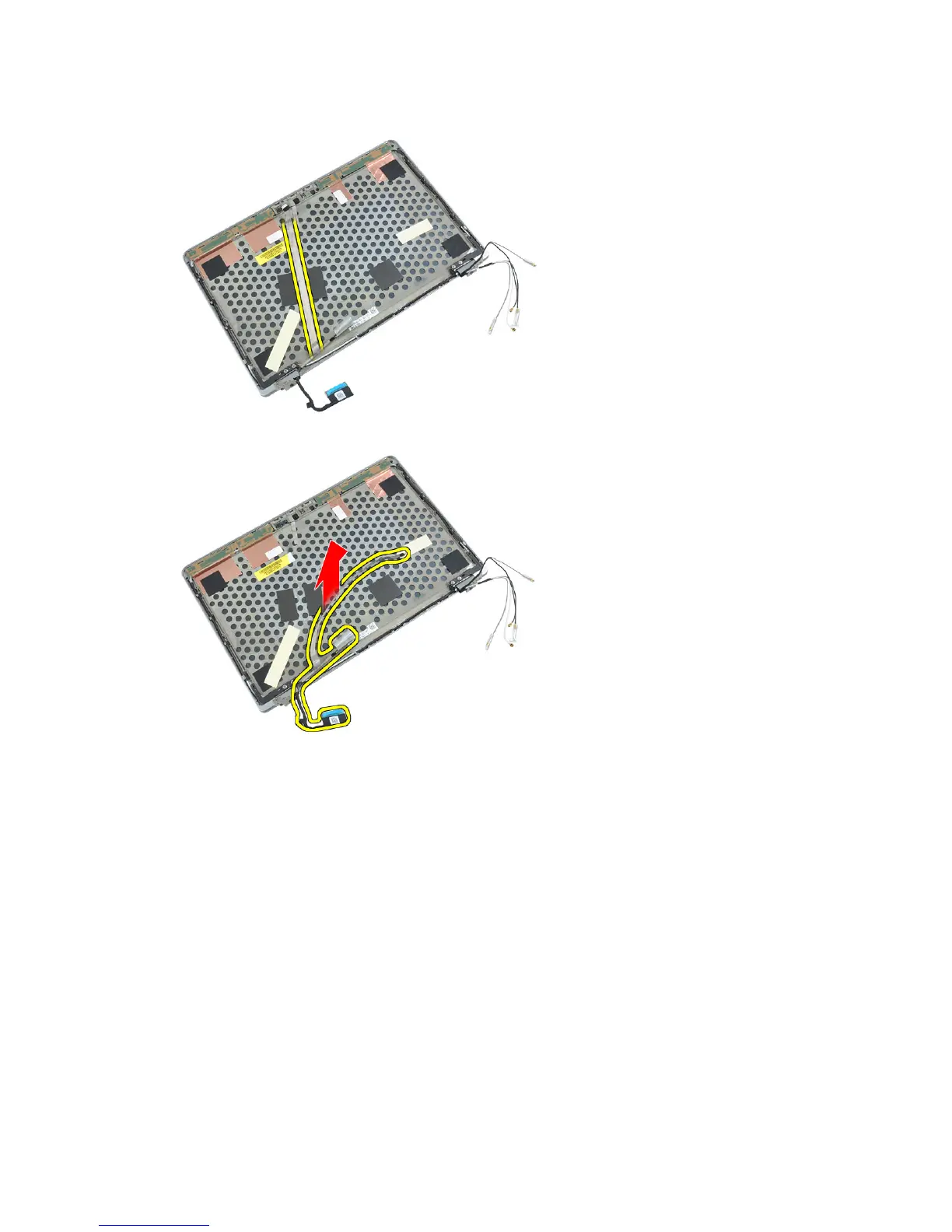

4. Peel back the adhesives that secures the LVDS and camera cable to the display assembly.
5. Remove the LVDS and camera cable from the display assembly.
Installing the LVDS and Camera Cable
1. Affix the LVDS and camera cable to the display assembly.
2. Connect the LVDS and camera cable.
3. Install the:
a) display assembly
b) display panel
c) display bezel
d) keyboard
e) palmrest
f) base cover
g) battery
h) ExpressCard
i) SD card
4. Follow the procedures in After Working Inside Your Computer .
