Dell Latitude E6230 - Chassis Base Procedures

Installing the Speakers
1. Align the speakers in the original position and connect the speaker cables.
2. Tighten the screws to secure both the speakers
3. Install the:
a) base cover
b) battery
c) ExpressCard
d) SD card
4. Follow the procedures in After Working Inside Your Computer .
Removing the Chassis Base
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) palmrest
f) keyboard
g) bluetooth module
h) heat-sink fan
i) speakers

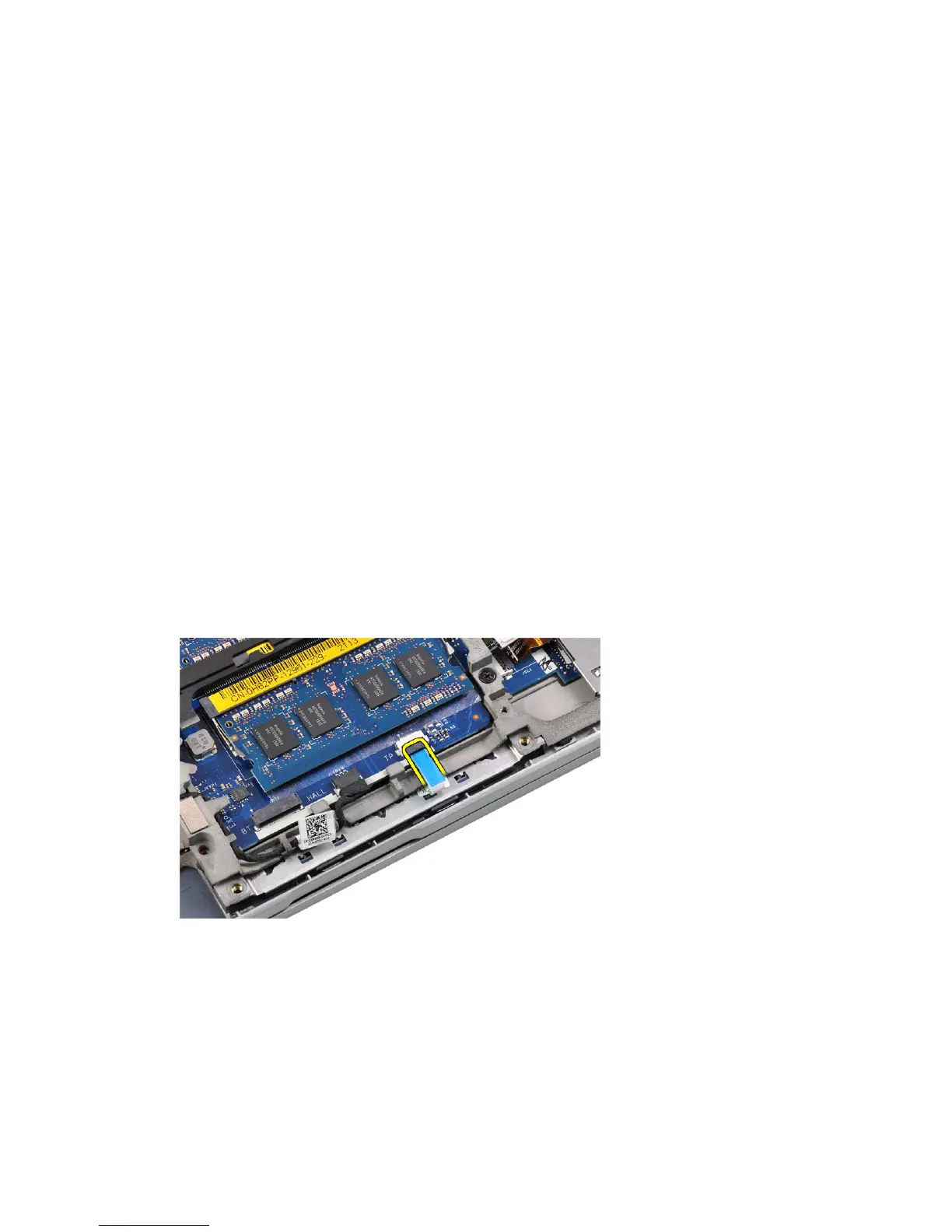

3. Disconnect the touchpad cable.
