Dell Latitude E6230 - WiFi-Switch Board Procedures

Installing the ExpressCard Cage
1. Insert the ExpressCard cage into its compartment.
2. Tighten the screws to secure the ExpressCard cage to the computer
3. Connect the ExpressCard reader cable.
4. Install the:
a) base chassis
b) speakers
c) heatsink
d) bluetooth module
e) keyboard
f) palmrest
g) base cover
h) battery
i) ExpressCard
j) SD card
5. Follow the procedures in After Working Inside Your Computer .
Removing the WiFi-Switch Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) SD card
b) ExpressCard
c) battery
d) base cover
e) palmrest
f) keyboard
g) bluetooth module
h) heat-sink fan
i) speakers
j) base chassis

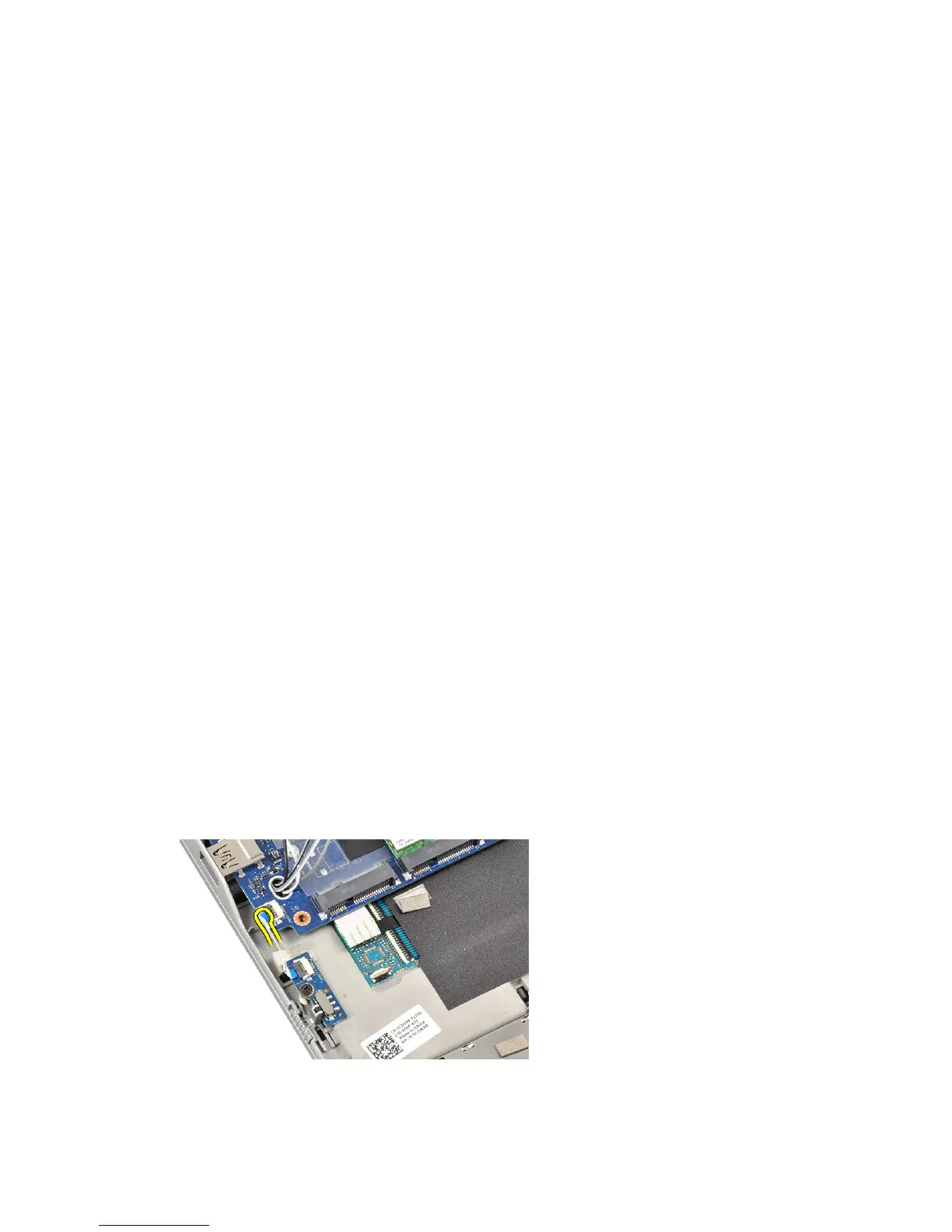

3. Disconnect the WiFi-switch board cable.
