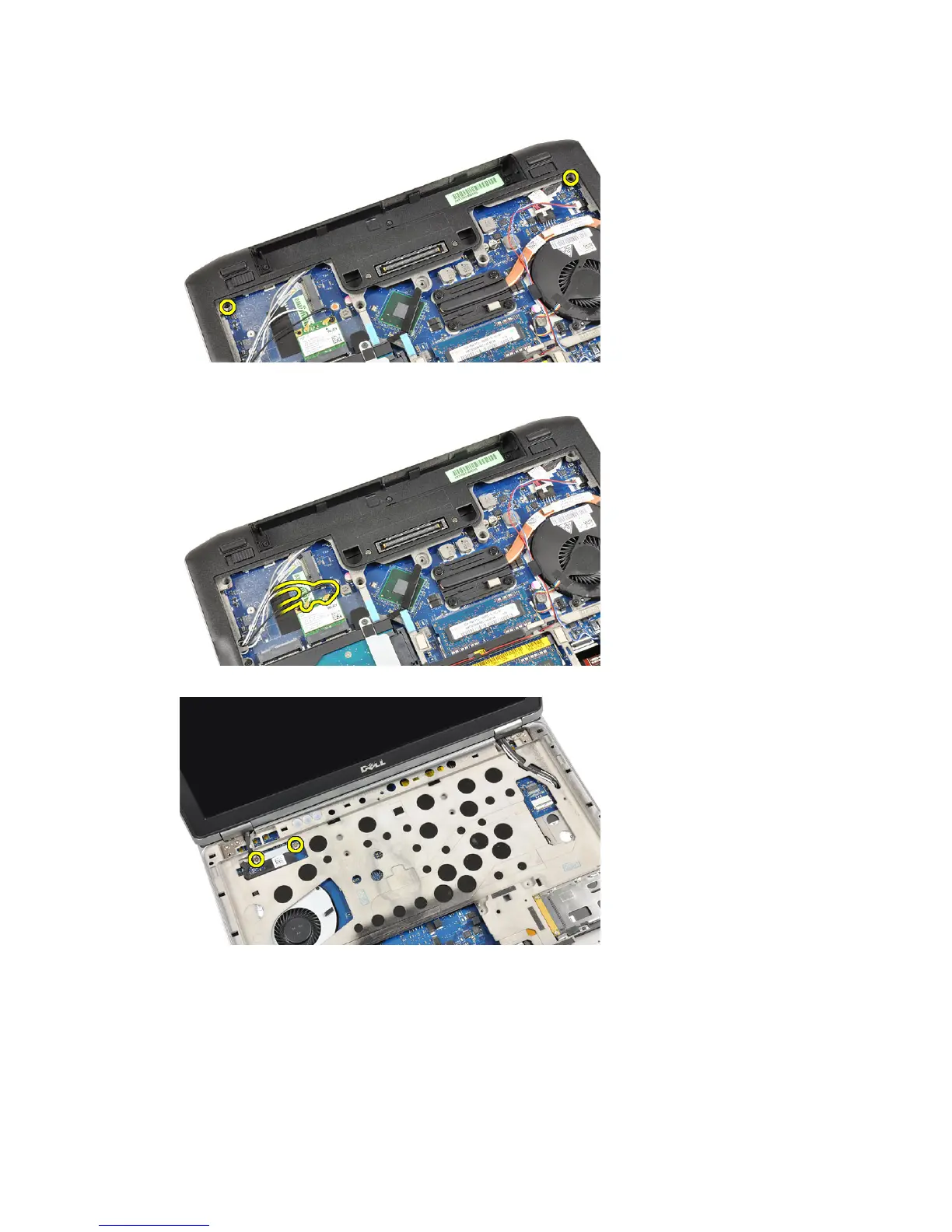

3. Remove the screws from the bottom of the chassis
4. Disconnect any antenna cables that may be connected to the wireless solutions and remove them from the routing
channels.
5. Remove the screws that secure the low-voltage differential signaling (LVDS) bracket to the computer.
