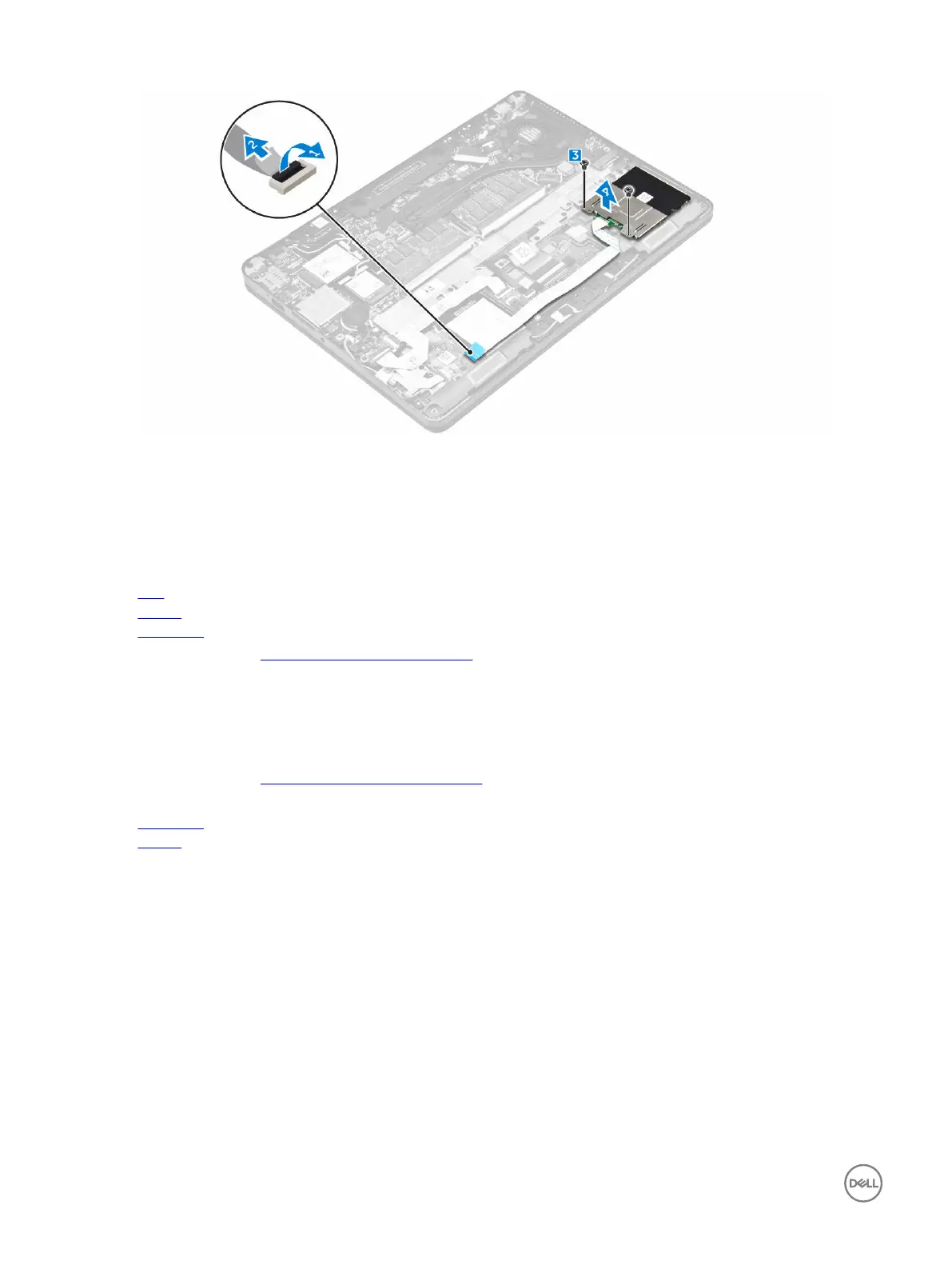

Installing the smart card cage
1. Slide the tabs on the smart card cage under the tabs on the computer.
2. Tighten the screws to secure the smart card cage to the computer.
3. Connect the smart card cable to the USH board.
4. Install the:
a. SSD
b. battery
c. base cover
5. Follow the procedure in After working inside your computer.
Speaker
Removing the speakers
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. To remove the speaker:
a. Disconnect the speaker cable from the connector on the system board [1].
b. Unroute the speaker cable from the routing clips on the touchpad and the computer [2].
c. Remove the screws that connect the speaker to the computer [3].
d. Remove the speaker from the computer [4] .
