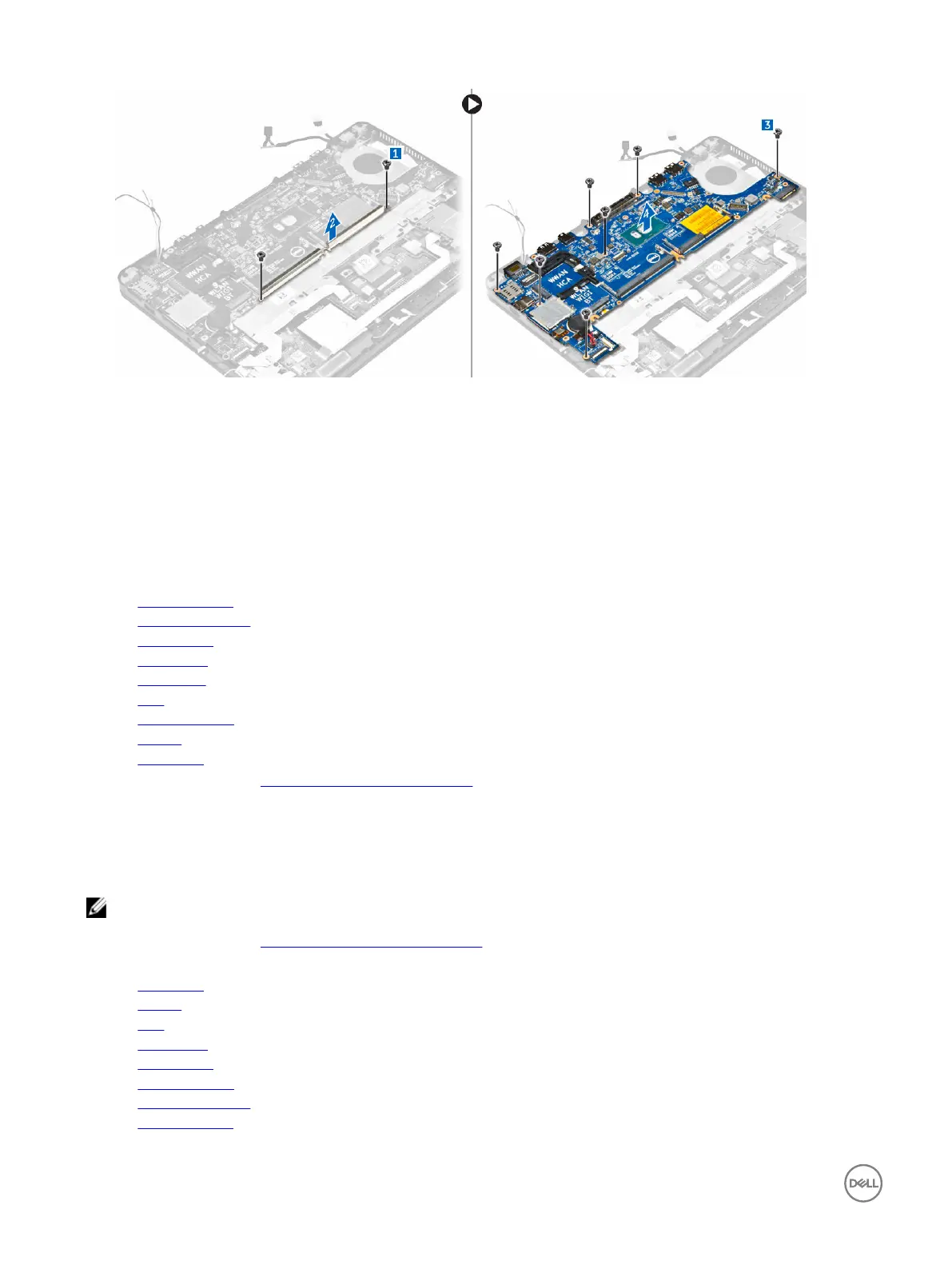

Installing the system board
1. Align the system board with the screw holders on the computer.
2. Place the metal bracket over the memory module connectors and tighten the screws to secure it to the computer.
3. Tighten the screws to secure the system board to the computer.
4. Connect the speaker, power connector, LED, touchpad, and system board cables to the connectors on the system board:
5. Connect the display assembly cable to the connector on the system board.
6. Place the metal bracket over the display assembly cable and tighten the screw to secure it.
7. Install the:
a. coin cell battery
b. heat sink assembly
c. WWAN card
d. WLAN card
e. dock frame
f. SSD
g. memory module
h. battery
i. base cover
8. Follow the procedure in After working inside your computer.
Keyboard
Removing the keyboard assembly
NOTE: The keyboard and the keyboard tray together is called the keyboard assembly.
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. SSD
d. WLAN card
e. WWAN card
f. memory module
g. heat sink assembly
h. coin cell battery
24
