Dell Latitude E7270 - Installing the Display Hinge

Dell Latitude E7270
62 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

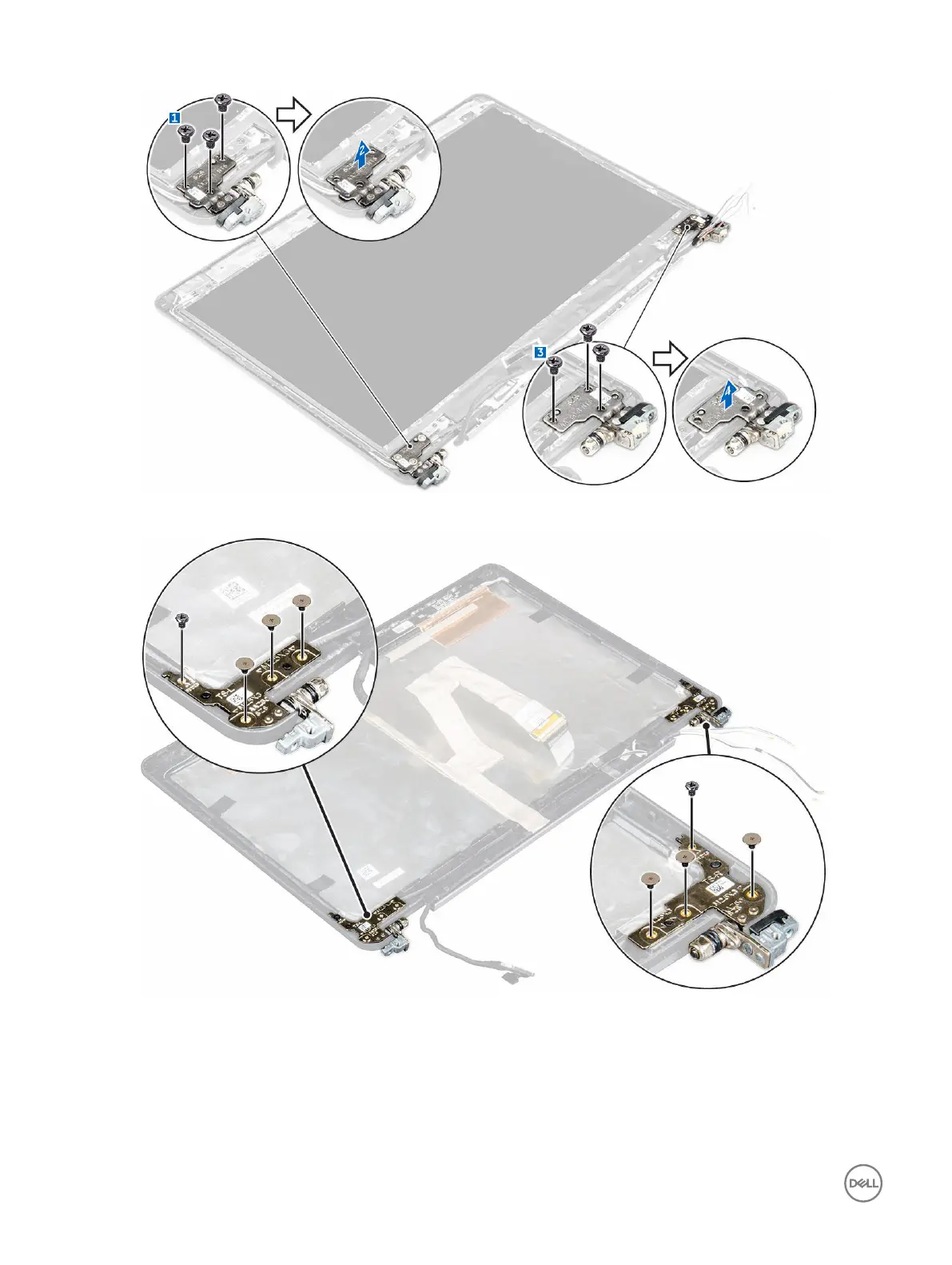

Figure 1. Removing hinges for a non touch system
Figure 2. Removing hinges for a touch system
Installing the display hinge
1. Align the display hinges with the screw holders on the display assembly.
2. Tighten the screws to secure the display hinge to the display assembly.
3. Install the:
34
