7. Follow the procedure in After working inside your computer.
Docking board

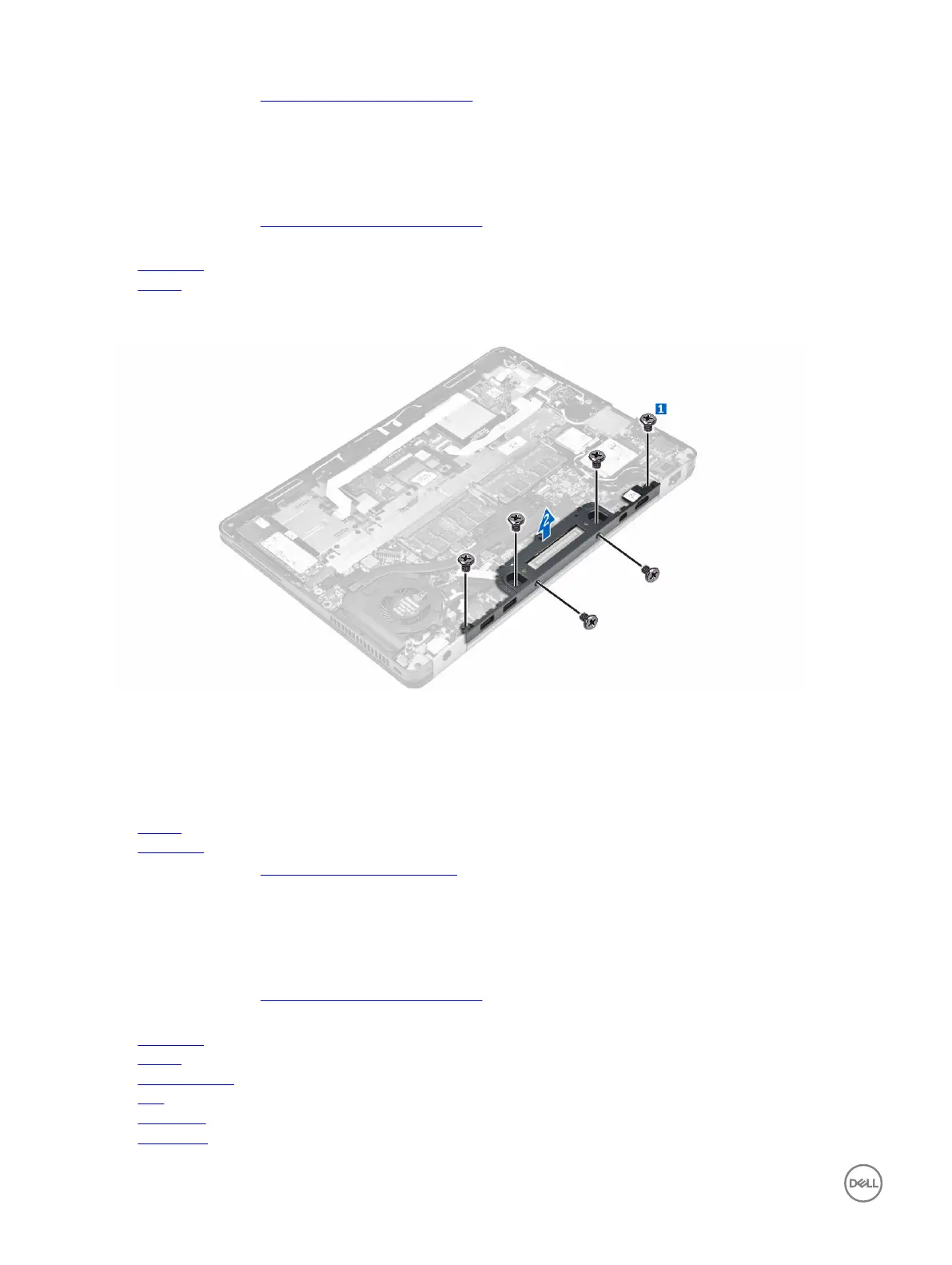

Removing the dock frame
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. Remove the screws that secure the dock frame to the computer [1].
4. Lift the dock frame from the computer [2].
Installing the dock frame
1. Place the dock frame on the computer.
2. Tighten the screws to secure the dock frame to the computer.
3. Install the:
a. battery
b. base cover
4. Follow the procedure in After working inside your system.
System board
Removing the system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. memory module
d. SSD
e. dock frame
f. WLAN card
22
