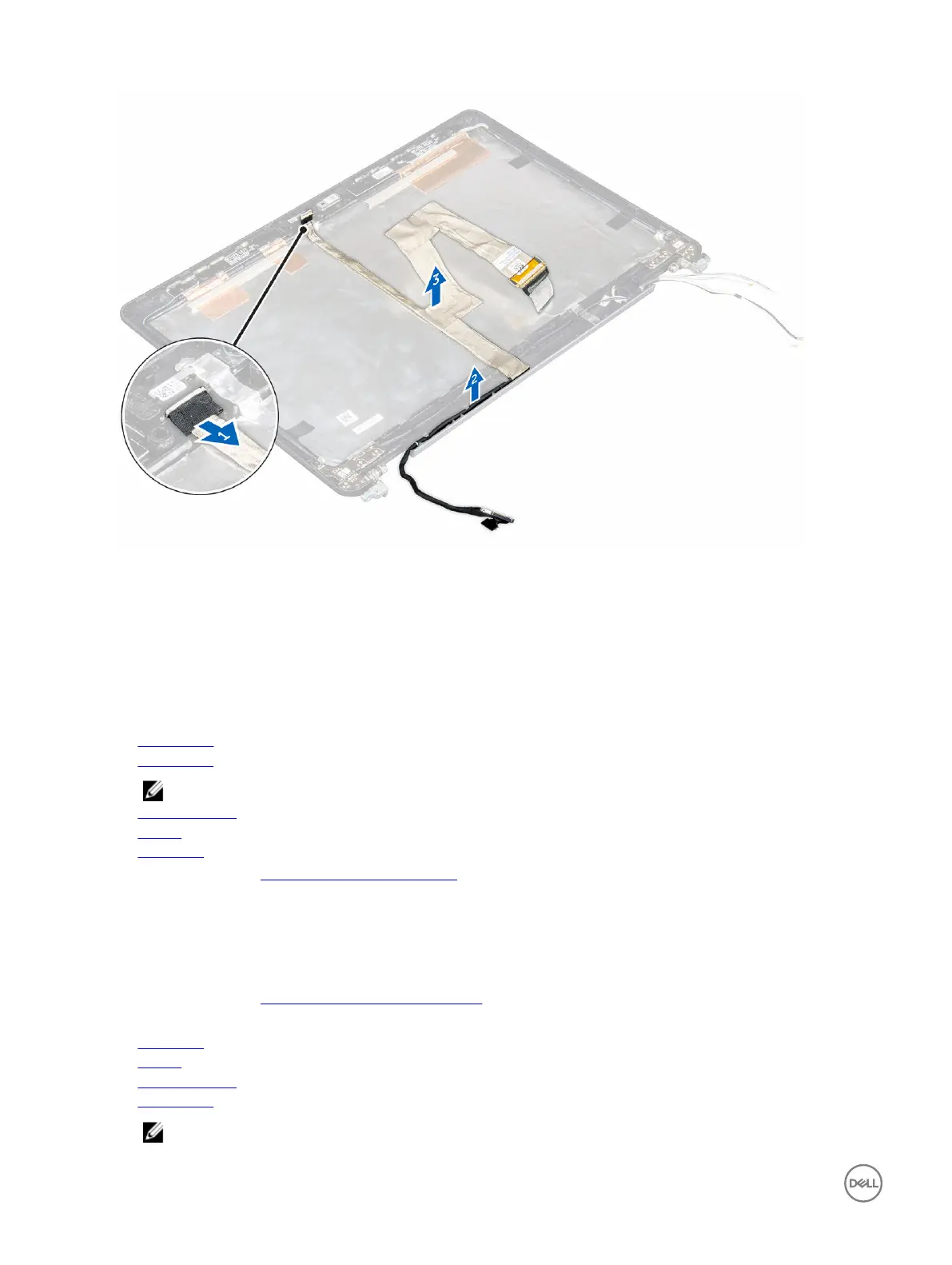

Figure 4. Removing the eDP cable for touch systems
Installing the eDP cable
1. Route the display cable through the routing clips on the display assembly.
2. Affix the camera cable adhesive and connect the camera cable.
3. Connect the eDP cable to the connector on the display assembly.
4. Install the:
a. display panel
b. display bezel
NOTE: This is applicable only for non touch systems.
c. display assembly
d. battery
e. base cover
5. Follow the procedure in After working inside your system.
Camera
Removing the camera
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
c. display assembly
d. display bezel
NOTE: This is applicable only for non touch systems.
