e. display panel
3. Peel the adhesive that secures the camera to the display assembly [1].
4. Disconnect the camera cable from the connector on the display assembly [2].
5. Lift the camera away from the display assembly [3].

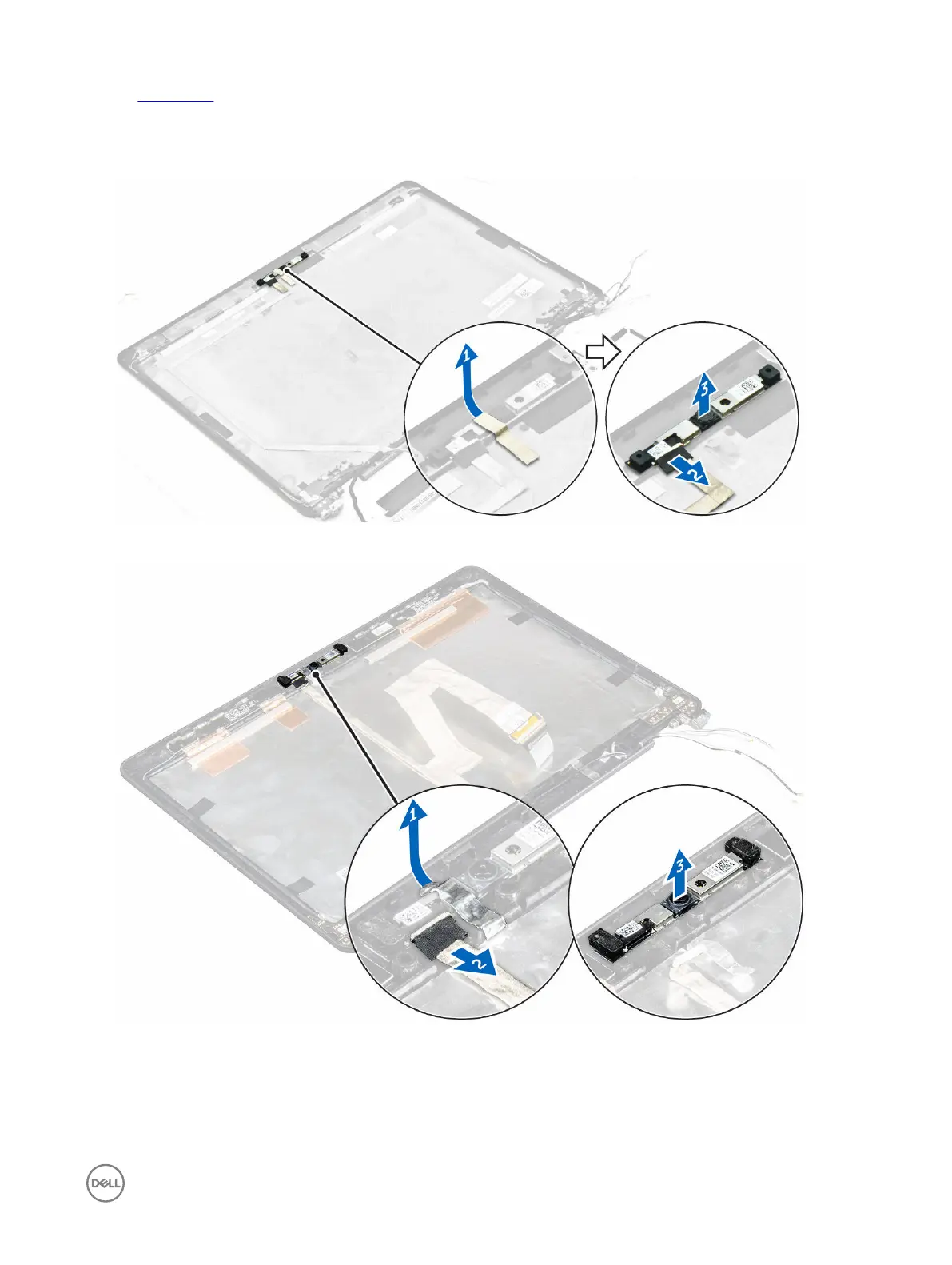

Figure 5. Removing the camera from a non touch system
Figure 6. Removing the camera from a touch system
