Dell Latitude E7270 - Installing the WWAN Card; Memory Module; Removing the Memory Module

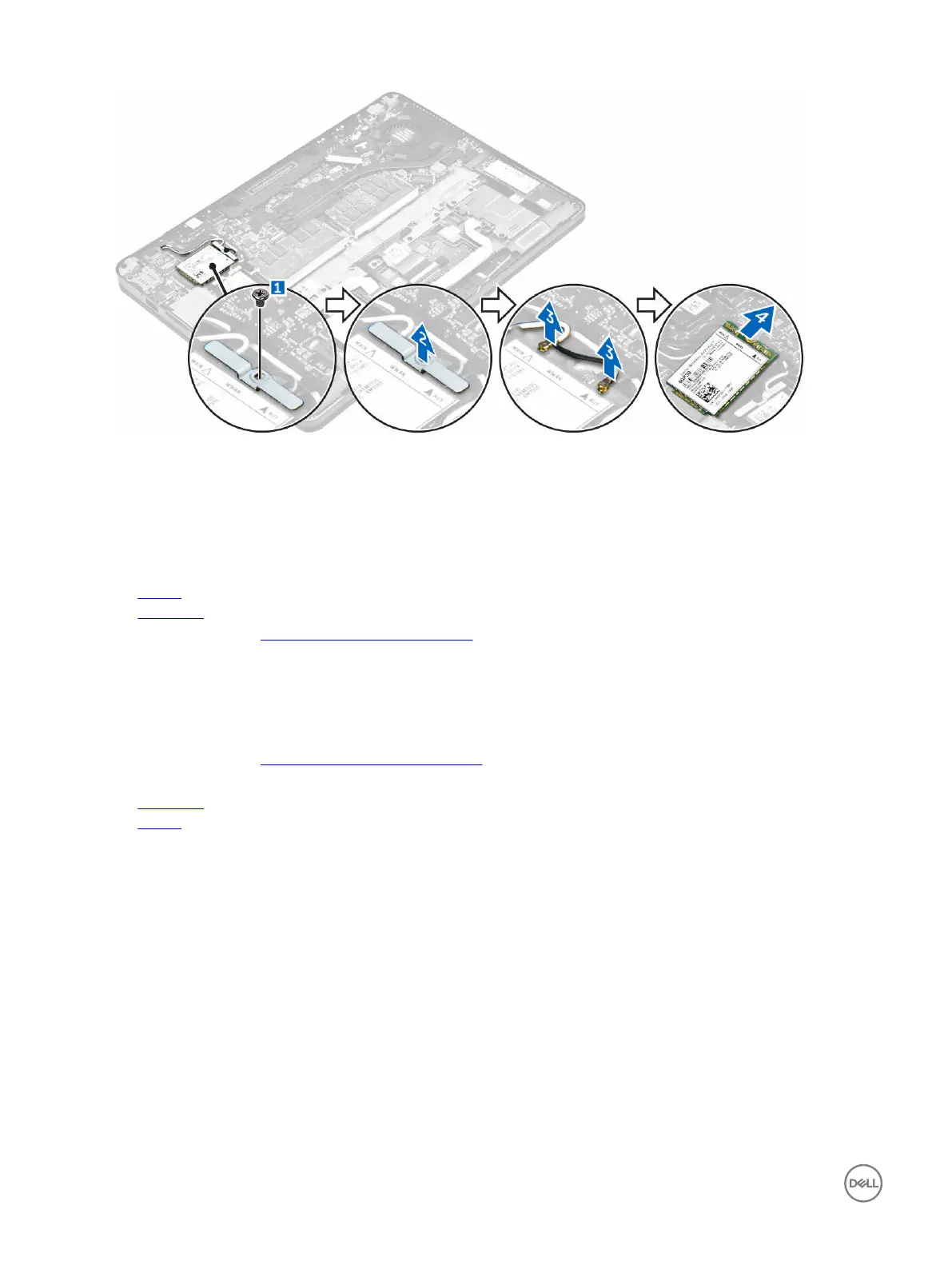

Installing the WWAN card
1. Insert the WWAN card into the connector on the computer.
2. Connect the WWAN cables to the connectors on the WWAN card.
3. Place the metal bracket and tighten the screw to secure it to the computer.
4. Install the:
a. battery
b. base cover
5. Follow the procedure in After working inside your computer.
Memory module
Removing the memory module
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery
3. Pull the clips securing the memory module until the memory module pops up [1].
4. Remove the memory module from the system board [2].
