Installing the toner cartridge

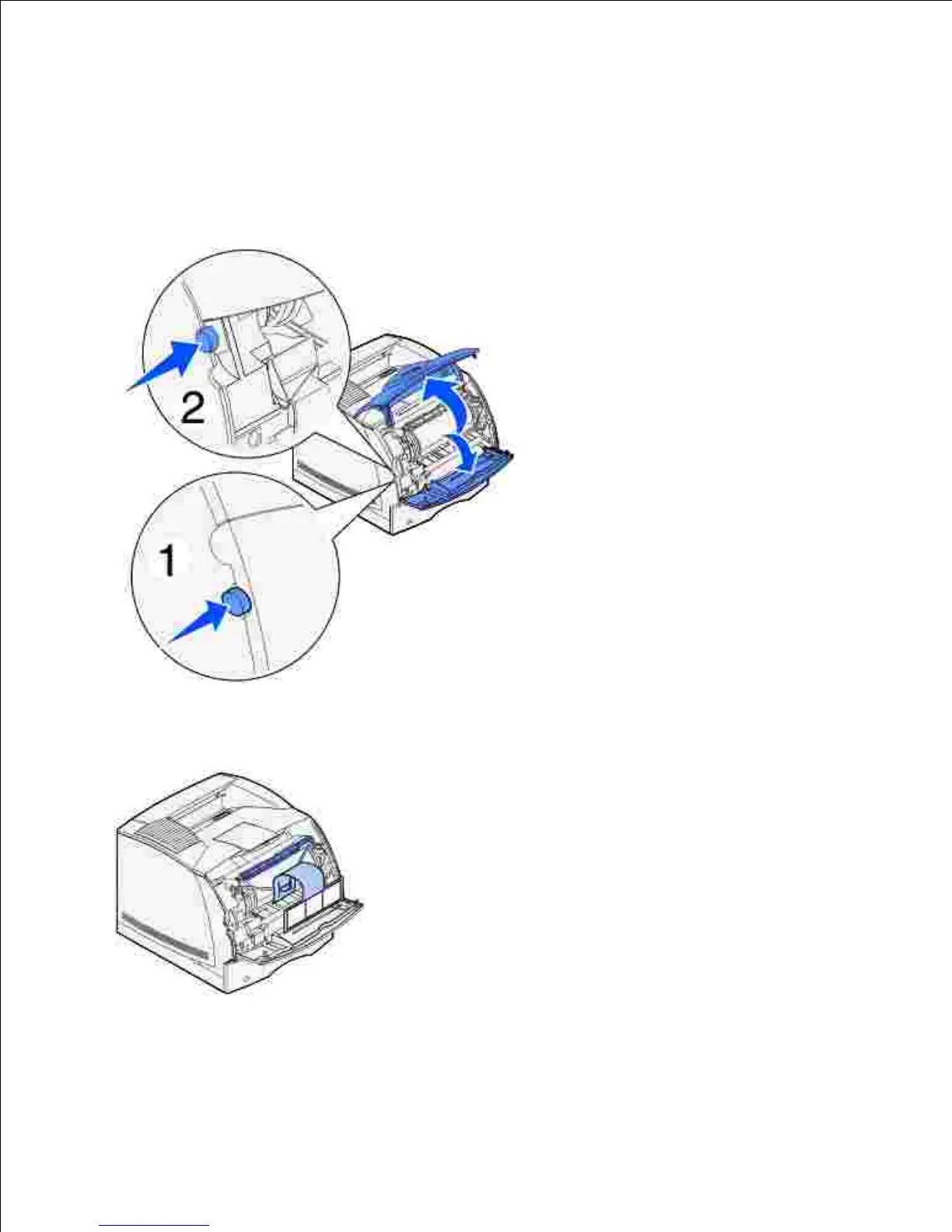

Press latch 1 to open the lower door. Press latch 2 to open the upper door.1.

Grasp the toner cartridge by the handle and pull it up and out.2.

Pull on the tabs on each side of the red plastic to remove the packaging from the toner cartridge.3.
