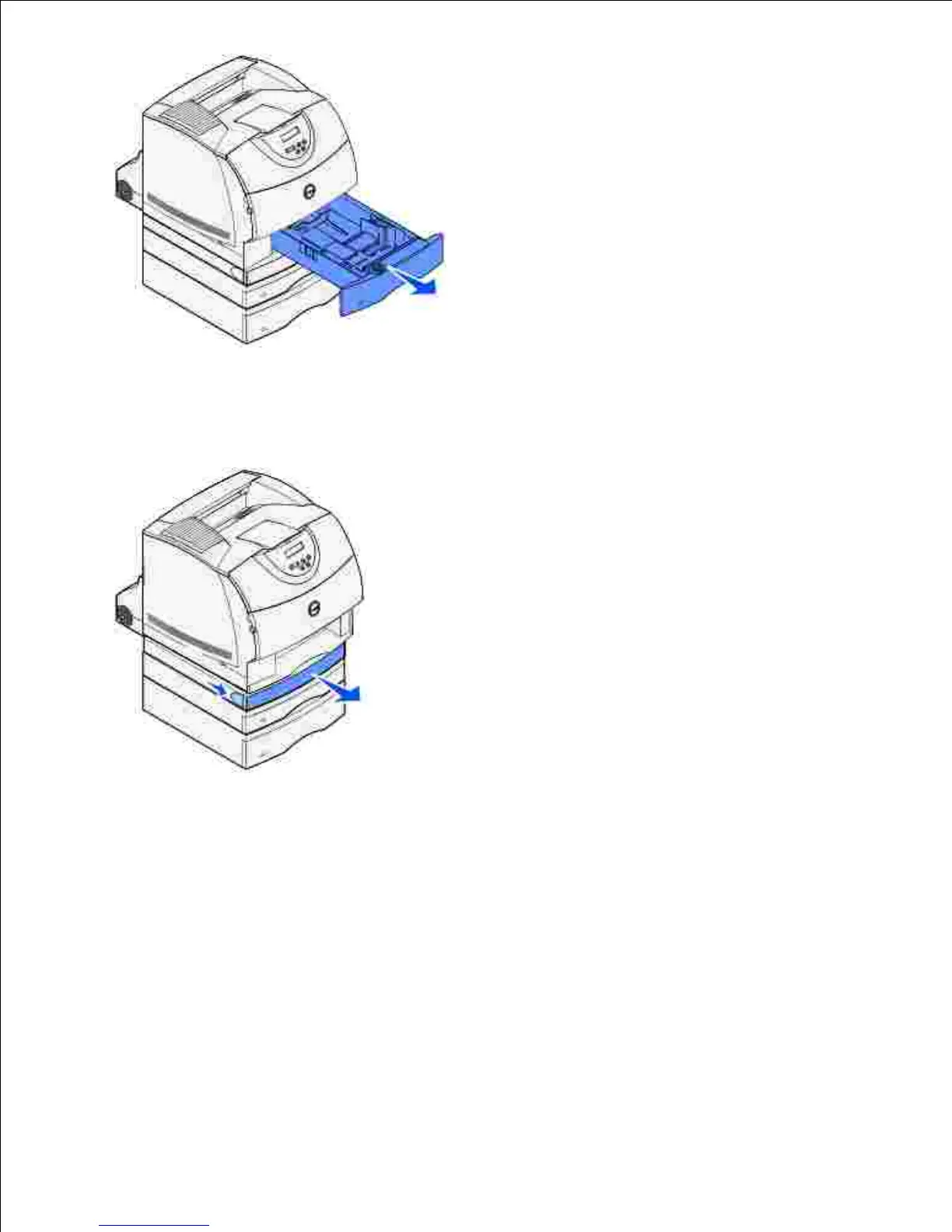

Locate the recessed areas on each side of the duplex front access cover.5.

Slowly pull the duplex front access cover straight out.6.

If the edge of the print media is visible, pull the print media straight up and out.7.
