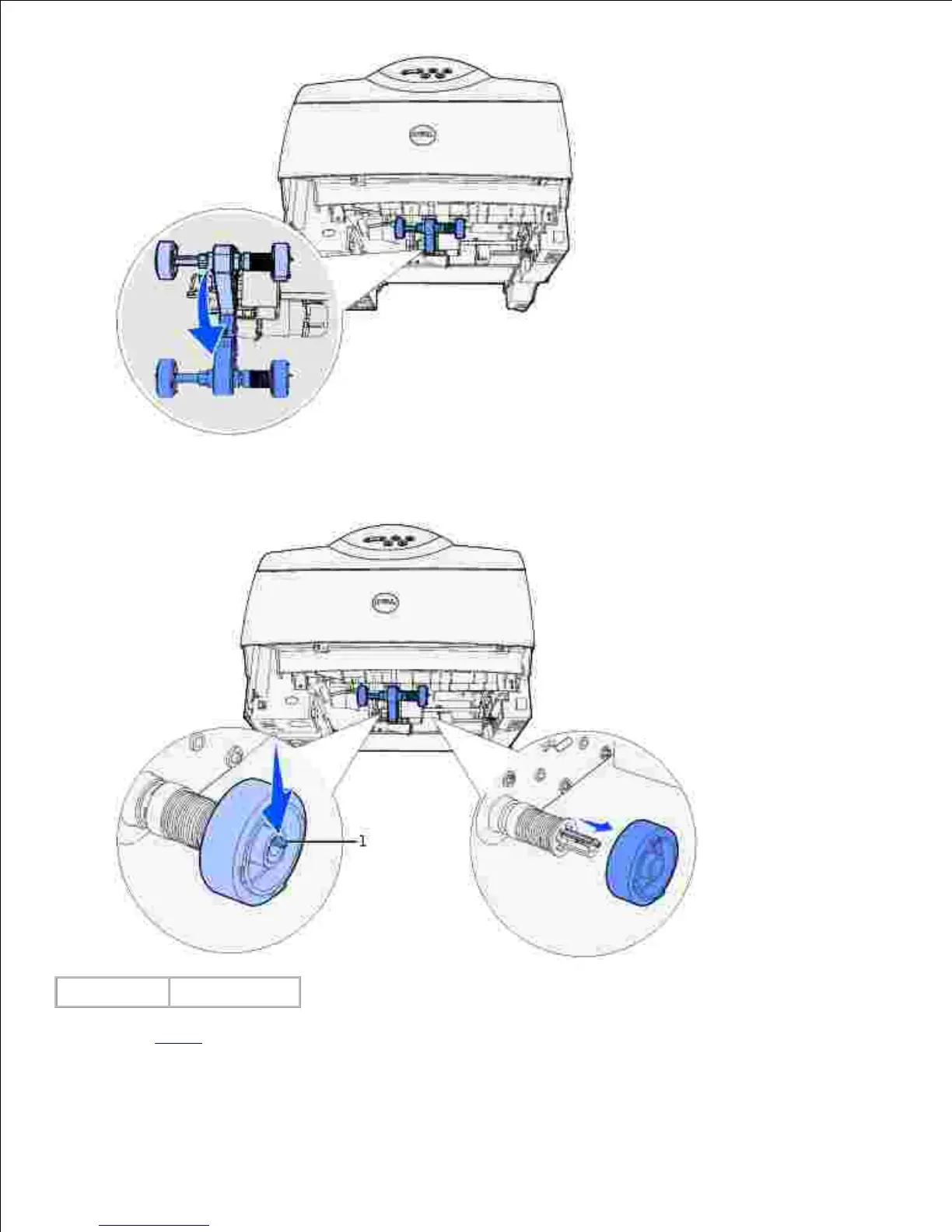

Press on the end of the tab and pull the pick roller off the arm.3.

Tab

Repeat step 3 on the other side to remove the other pick roller.4.

Gently release the pick roller arm.5.
