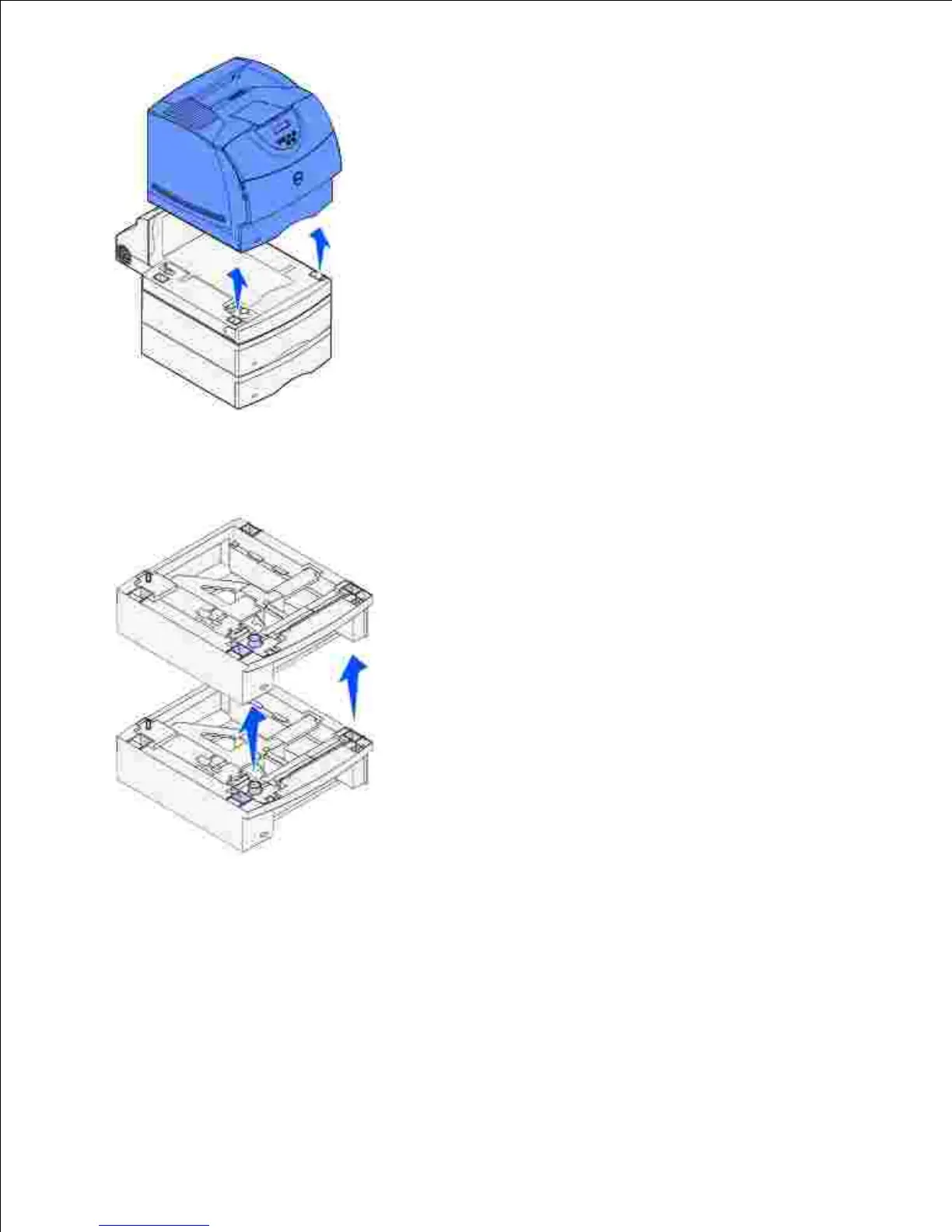

Carefully lift the optional drawer straight up until it is completely disconnected from the option below

it. Set it aside.
