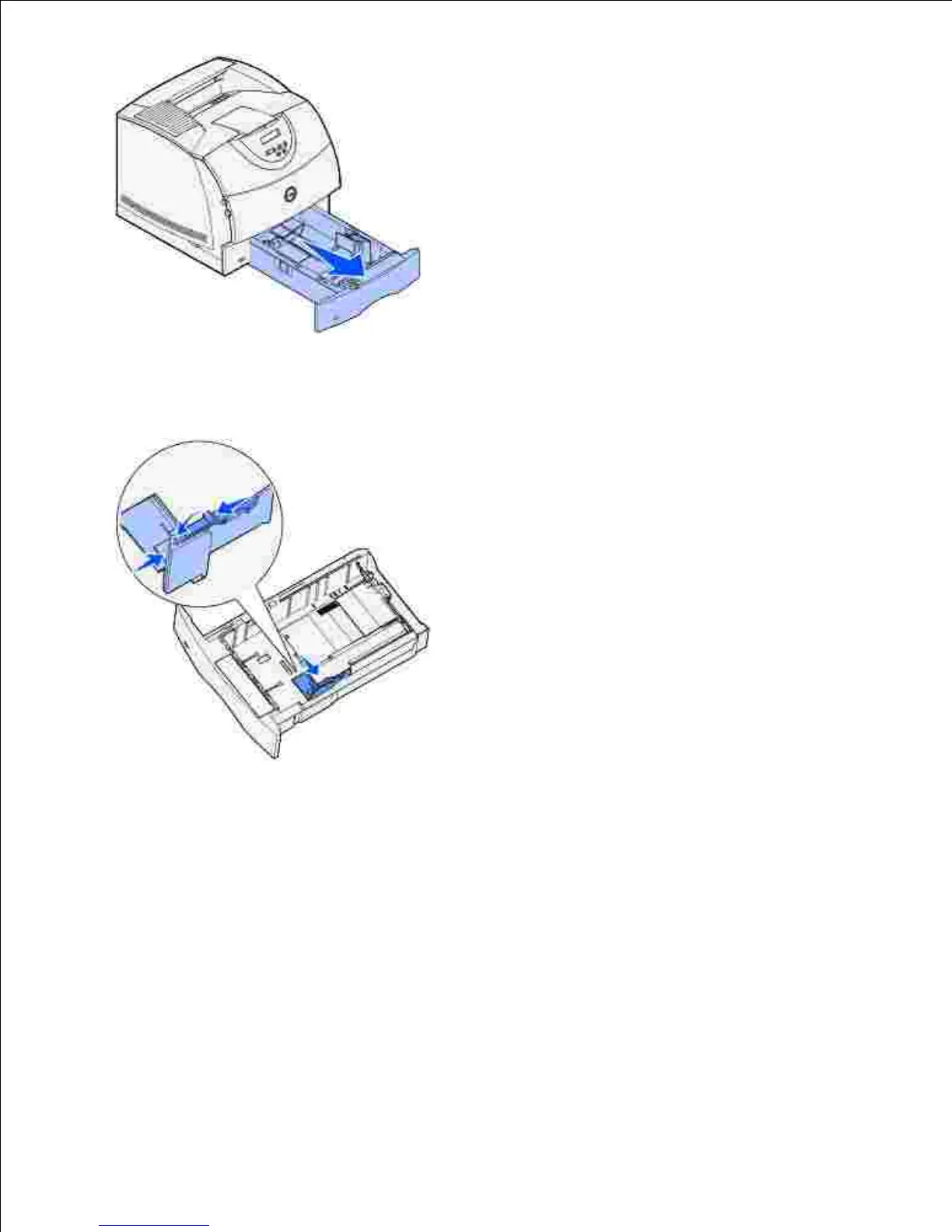

Squeeze the width guide tab and the side of the guide as shown. Slide the width guide to the far right

side of the tray.

Squeeze the length guide lever and slide the length guide to the correct position for the size of print

media you are loading. Notice the size indicators on the left side of the tray.
