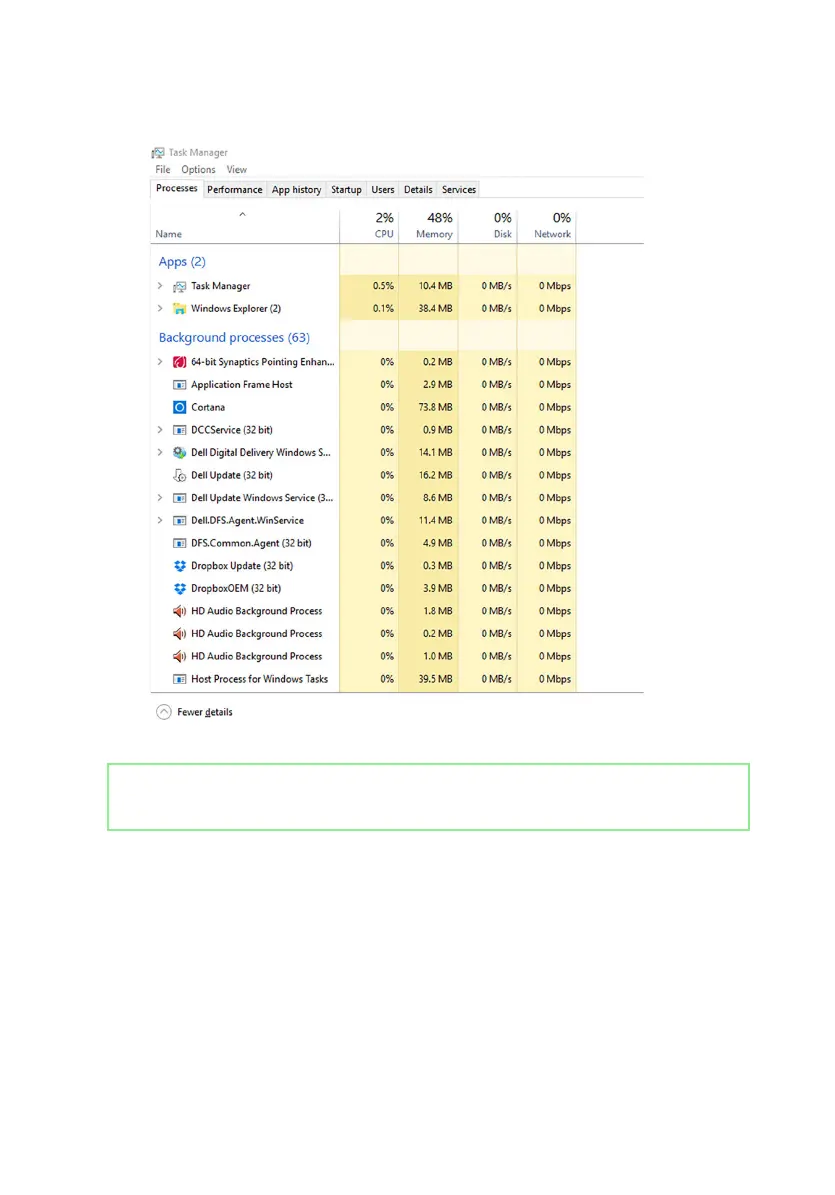

3 Click or tap the Performance tab to display the processor performance details.

Identifier GUID-FAD3C0CC-13B9-444D-BE54-9D917DAD6798

Status Released

Operating System

The Inspiron 11-3168 is shipped with the Windows 10 factory installation.

126
