7 Slide the I/O-board cable into its slot on the system board and press down the
latch to secure the cable.
The following table provides the antenna-cable color scheme for the wireless
card supported by your computer.
Connectors on the wireless card Antenna-cable color
Main (white triangle) white
Auxiliary (black triangle) black

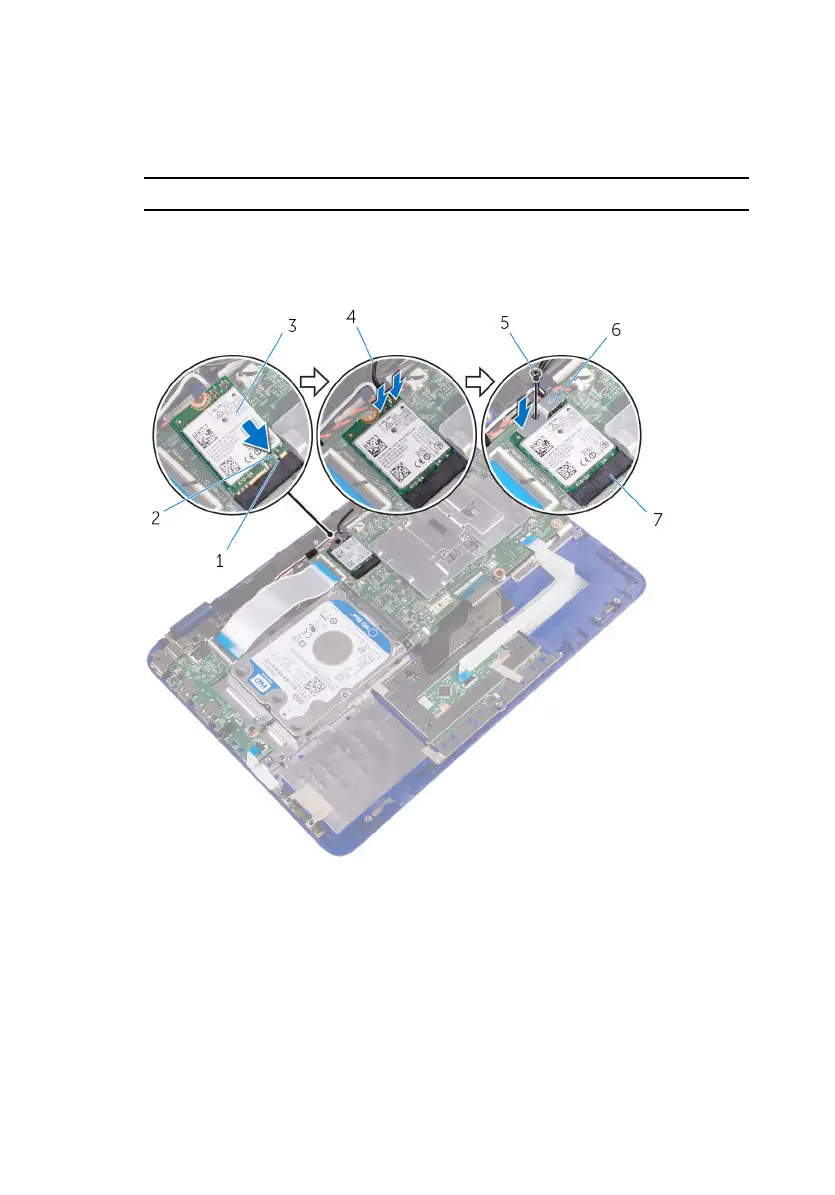

1 tab 2 notch
3 wireless card 4 antenna cables (2)
5 screw 6 wireless-card bracket
7 wireless-card slot
43
