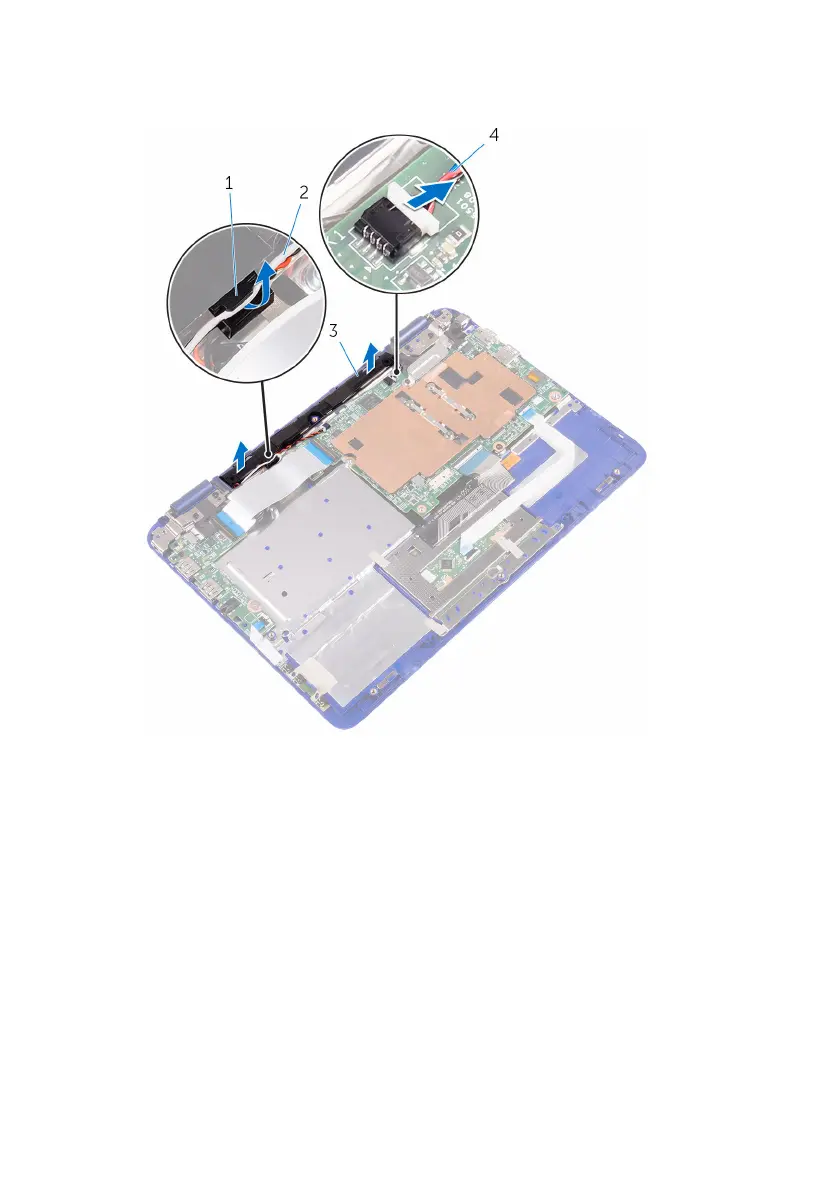

3 Release the speakers from the alignment posts and lift the speakers o the

palmrest and keyboard assembly.

1 routing guide 2 coin-cell battery and antenna

cables

3 speakers (2) 4 speaker cable
