Dell P62F001 - Installing the Battery; Removing the Battery Cable

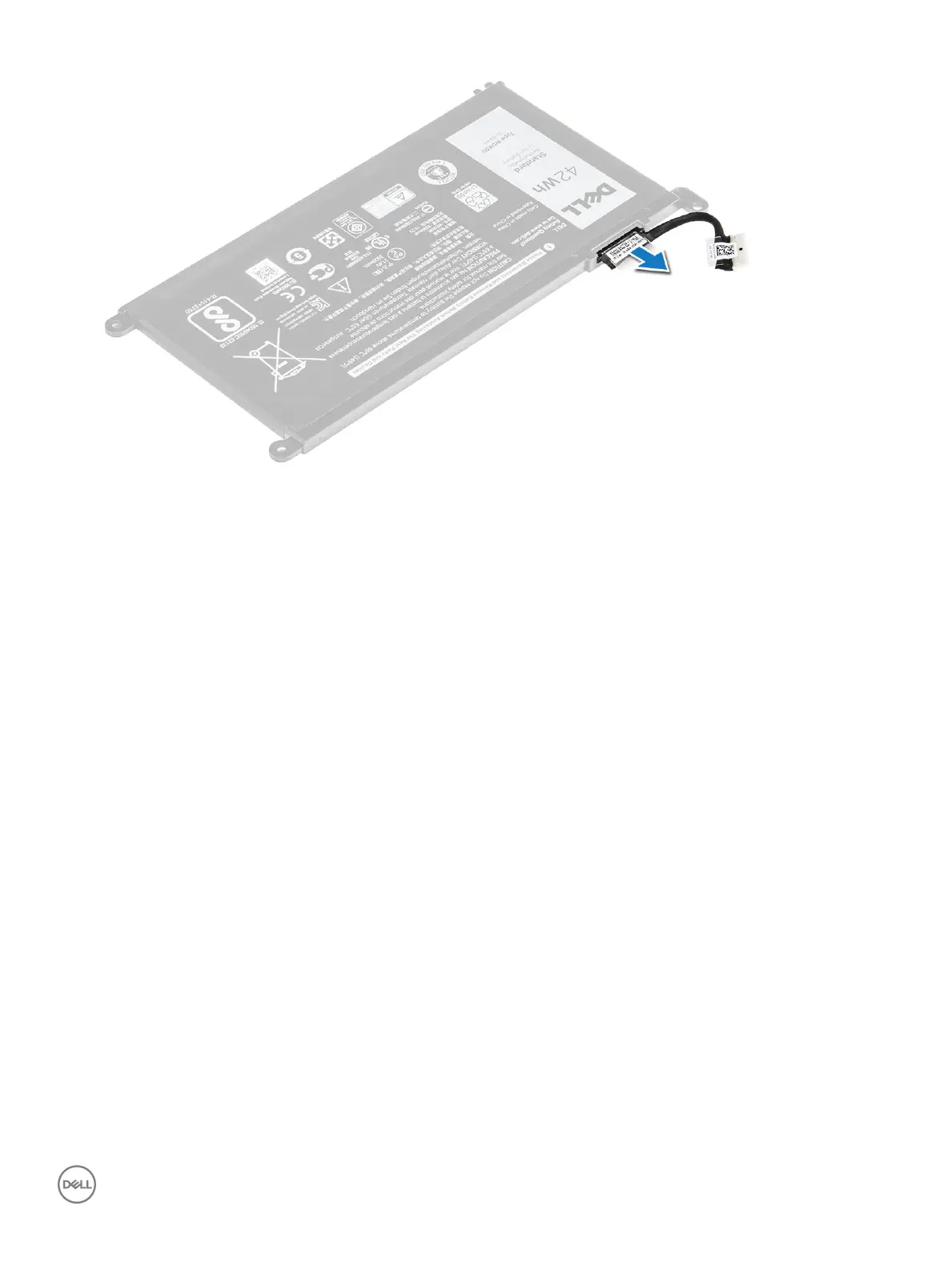

Installing the battery cable
1 Connect the battery cable to the battery cable on the battery.
2 Install the:
a battery
b back cover
3 Follow the procedure in After working inside your computer
Removing the solid state drive - SSD bracket
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a back cover
b battery
3 To remove the SSD :
a Remove the screws that secure the SSD [1] .
b Lift to remove the SSD from the computer [2].
Removing and installing components
15
