Installing the LED board
1 Place the LED module into its slot on the computer chassis.
2 Tighten the screw to secure the LED module to the computer chassis.
3 Connect the LED module cables to the computer chassis.
4 Install the:
a battery
b back cover
5 Follow the procedure in After working inside your computer
Removing the speakers
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a back cover
b battery
3 To remove the speaker cables:

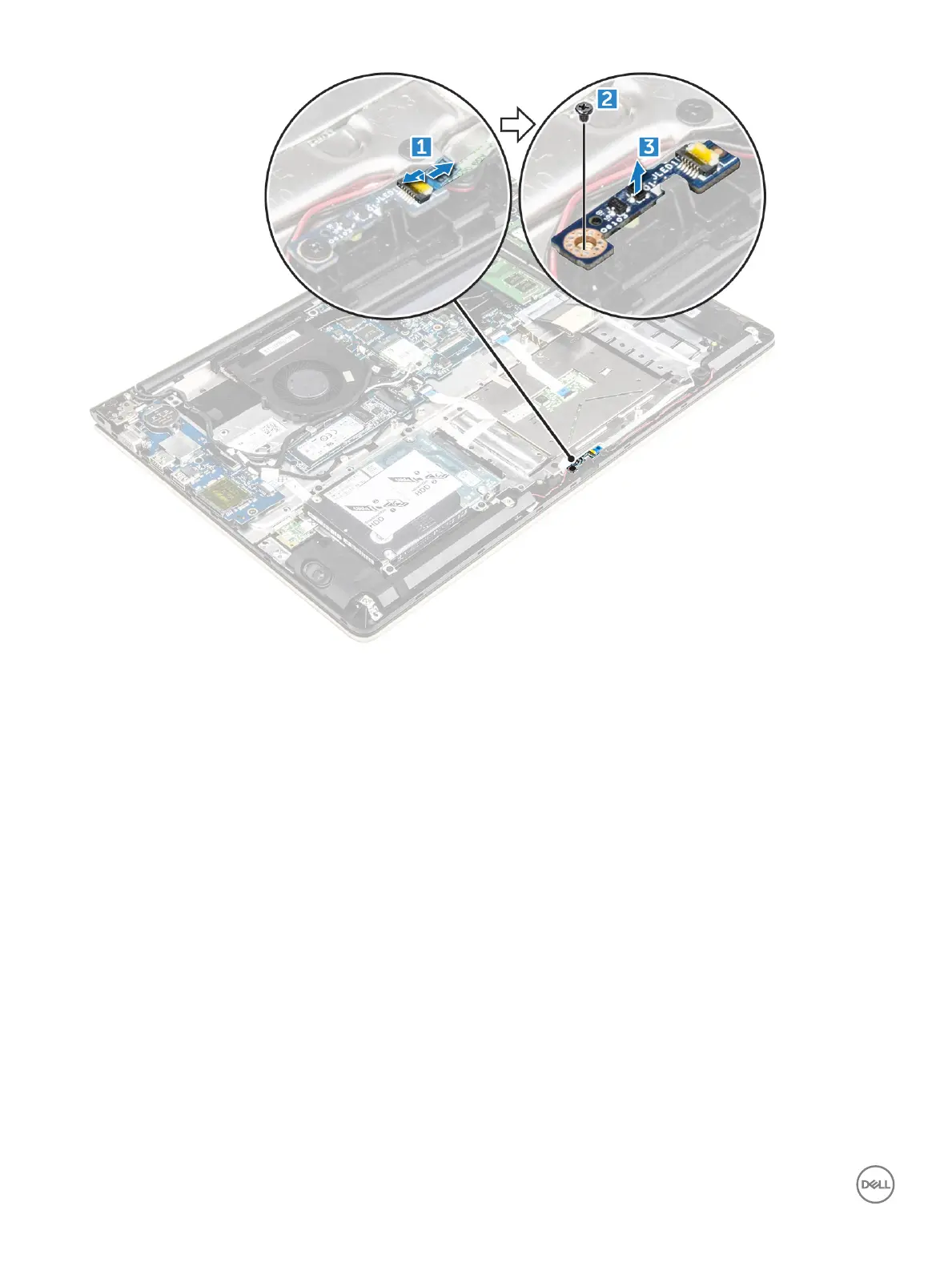

a Disconnect the speaker connector cables from the system board and the LED board. [1] [2].
b Unroute the speaker cable from around the LED board [3].
