Dell P62F001 - Installing the Camera; Removing the Display

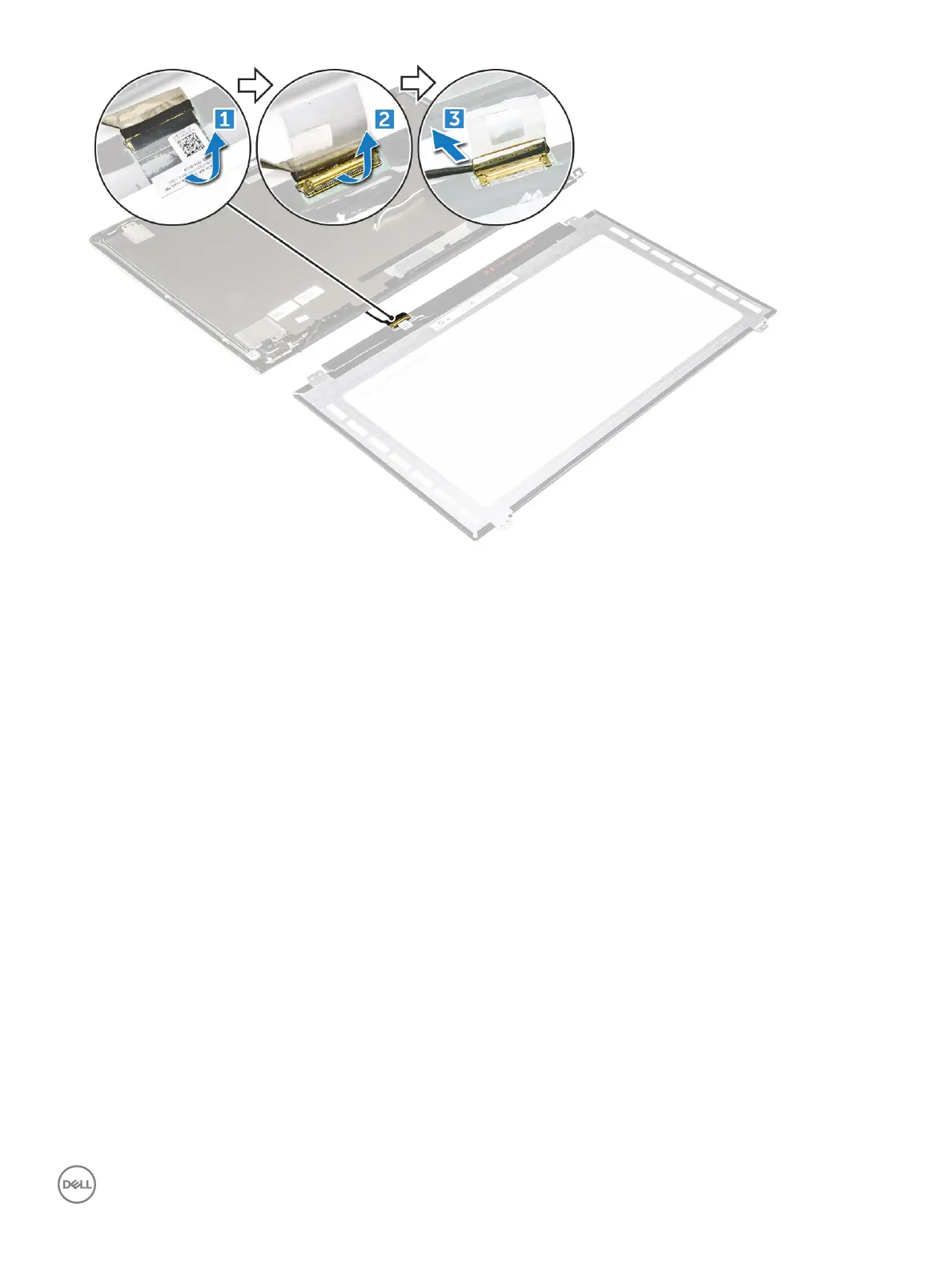

Installing the display
1 Connect the display connector cable to its connector on the display panel.
2 Ax the adhesive tape over the connector.
3 Flip the display around and align it along the edges of the display panel.
4 Install the screws that secure the display to the display panel.
5 Install the:
a display hinges
b display bezel
c display assembly
d system fan
e LED board
f WLAN card
g battery
h back cover
6 Follow the procedure in After working inside your computer
Removing the palmrest
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a back cover
b battery
c WLAN card
d LED board
e system fan
f display assembly
Removing and installing components
43
