f display assembly
g display bezel
h display hinges

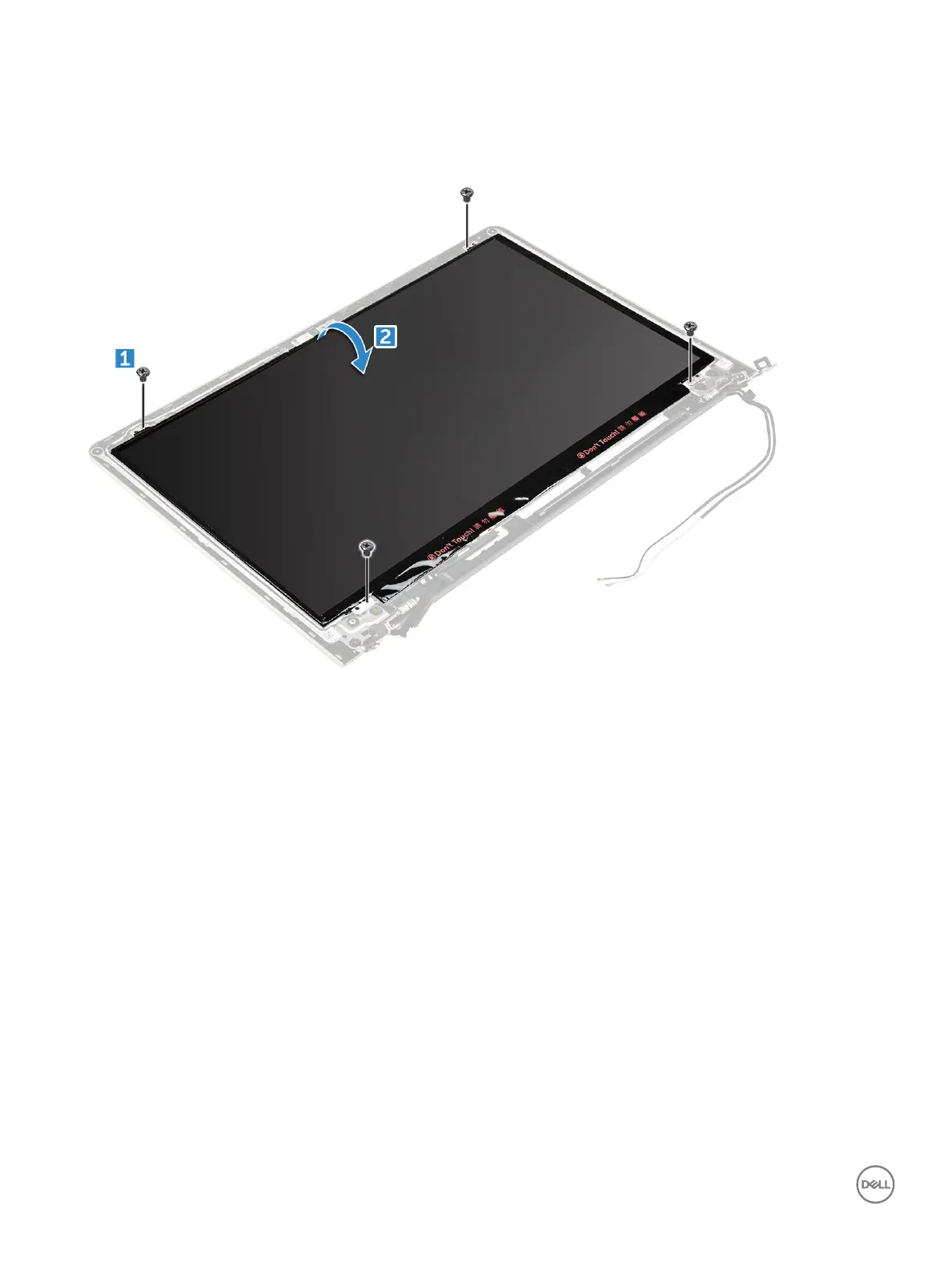

3 To remove the display :
a Remove the screws that secure the display [1].
b Lift the display panel and turn it over [2].
4 To remove the display:
a Peel away the adhesive tape above the display connector [1].
b Disconnect the display connector and remove the display from the display panel [2] [3].
