g display bezel

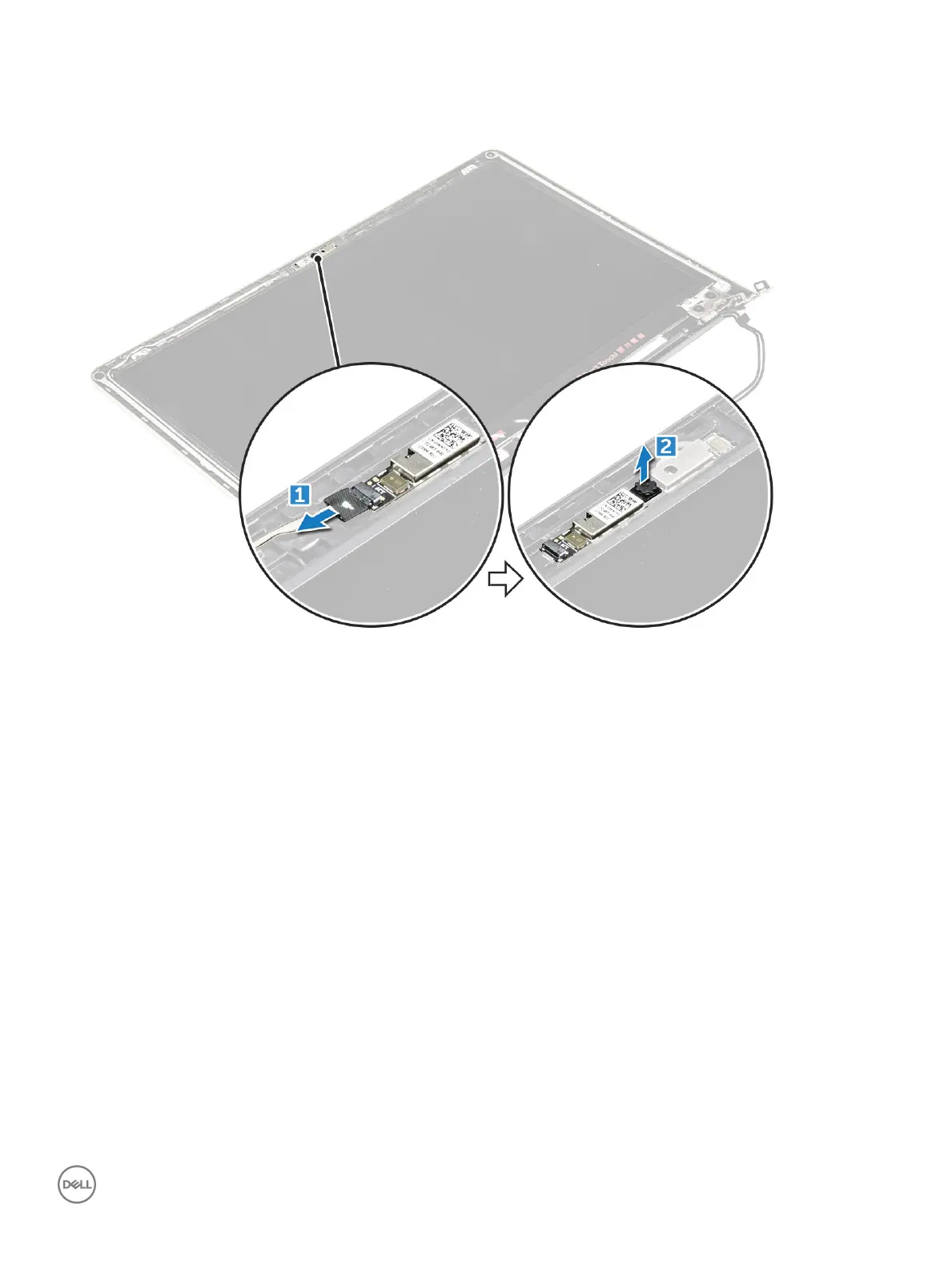

3 To remove the camera:
a Disconnect the camera connector cable. [1]
b Lift to remove the camera from the computer. [2]
Installing the camera
1 Align the camera to its slot on the display panel.
2 Connect the camera cable to its connector on the display panel.
3 Install the:
a display bezel
b display assembly
c system fan
d LED board
e WLAN card
f battery
g back cover
4 Follow the procedure in After working inside your computer
Removing the display
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a back cover
b battery
c WLAN card
d LED board
e system fan
Removing and installing components
41
