Dell P62F001 - Removing the Hard Drive Bracket; Installing the Hard Drive Bracket

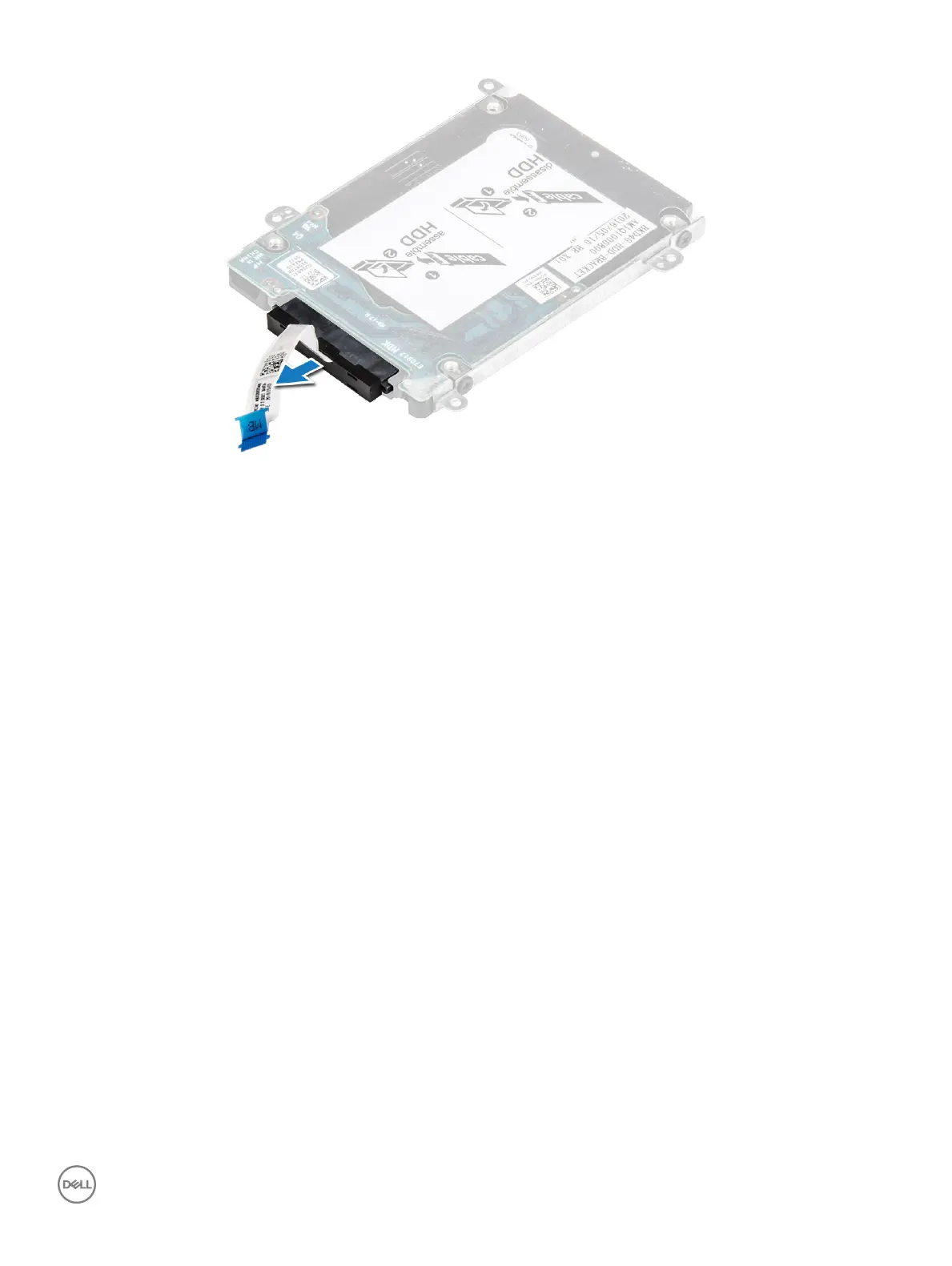

Installing the hard drive cable
1 Connect the hard drive cable to the hard drive.
2 Install the:
a hard drive
b battery
c back cover
3 Follow the procedure in After working inside your computer
Removing the memory module
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a back cover
b battery
3 To remove the memory module:
a Pull the retention clips from the memory module until it pops up. [1]
b Remove the memory module from the connector on the system board. [2]
Removing and installing components
