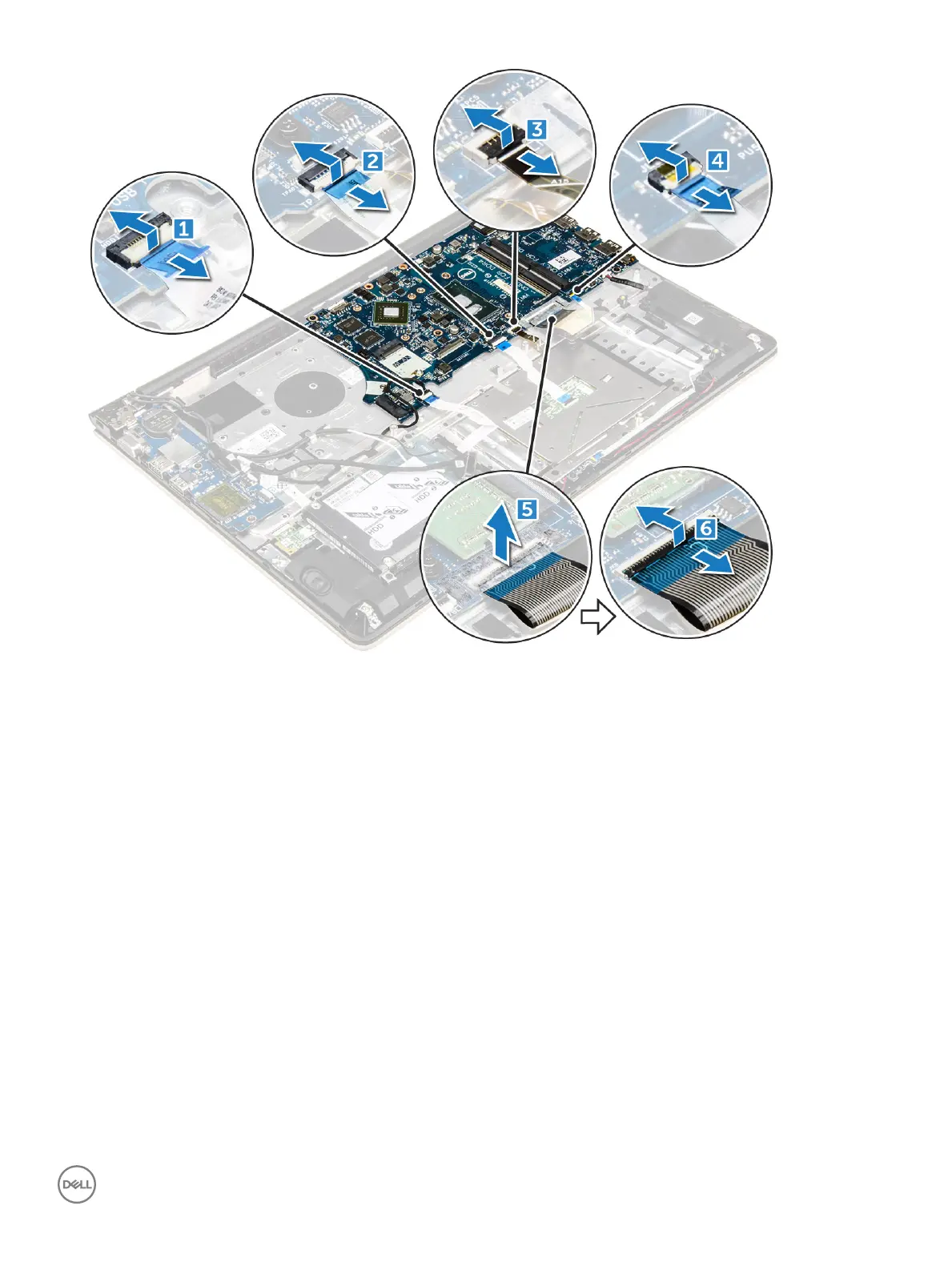

4 To remove the system board cables:
a Disconnect the display power supply cable [1].
b Lift the tab to disconnect the display connector cable [2].
Removing and installing components
33
