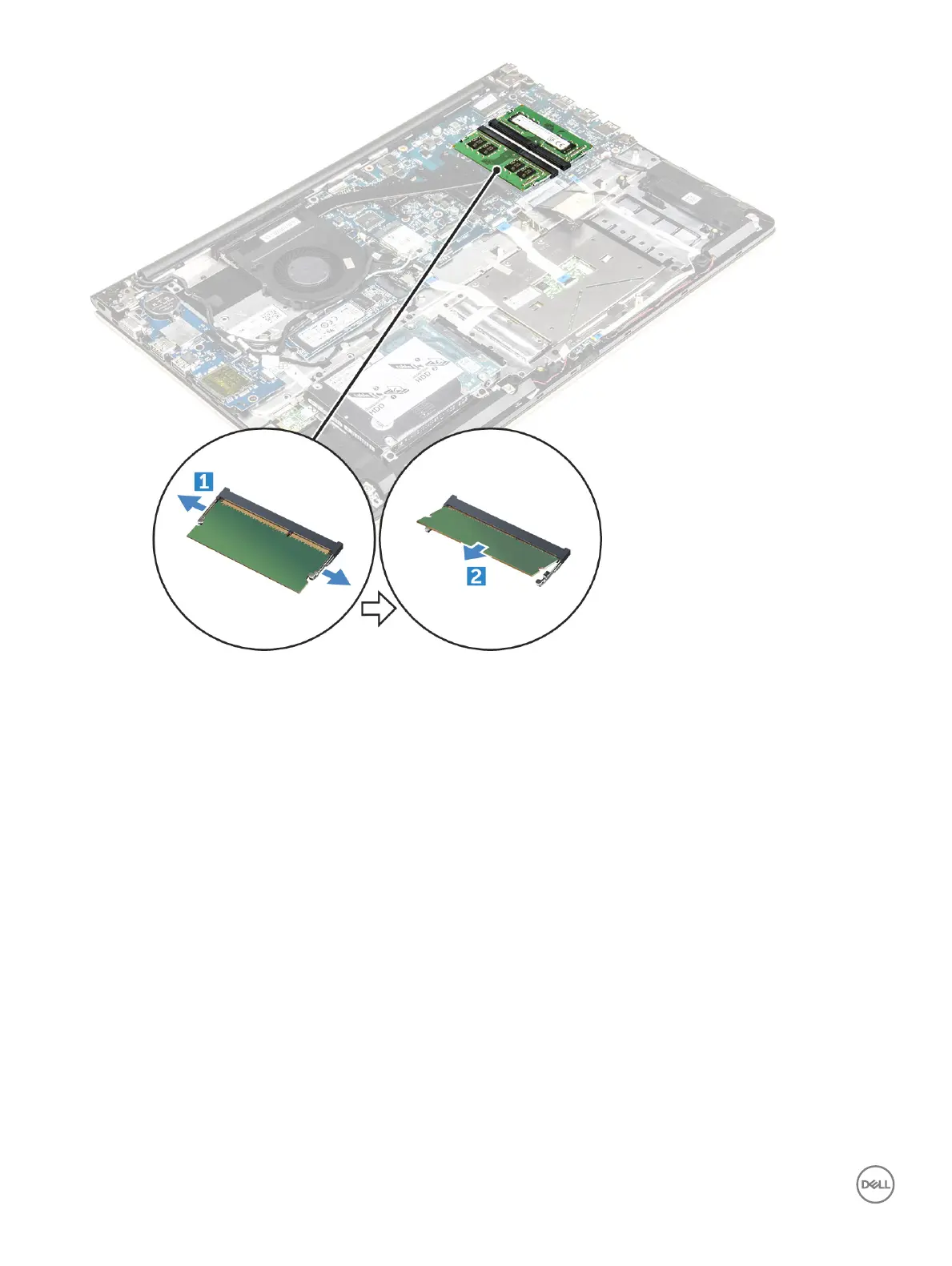

Dell P62F001 - Removing the Hard Drive Cable; Installing the Hard Drive Cable; Removing the Memory Module

Installing the memory module
1 Insert the memory module into the memory module socket.
2 Press the memory module until it clicks into place.
3 Install the:
a battery
b back cover
4 Follow the procedure in After working inside your computer
Removing the WLAN card
1 Follow the procedures in Before working inside your computer.
2 Remove the:
a back cover
b battery
3 To remove the WLAN card:
a Remove the screw that secures the WLAN card to the computer and lift the plastic tab [1] [2].
b Disconnect the antenna cables from the WLAN card [3].
c Remove the WLAN card from the slot on the system board [4].
20
Removing and installing components
