g SSD
h memory
i heat sink
j system board

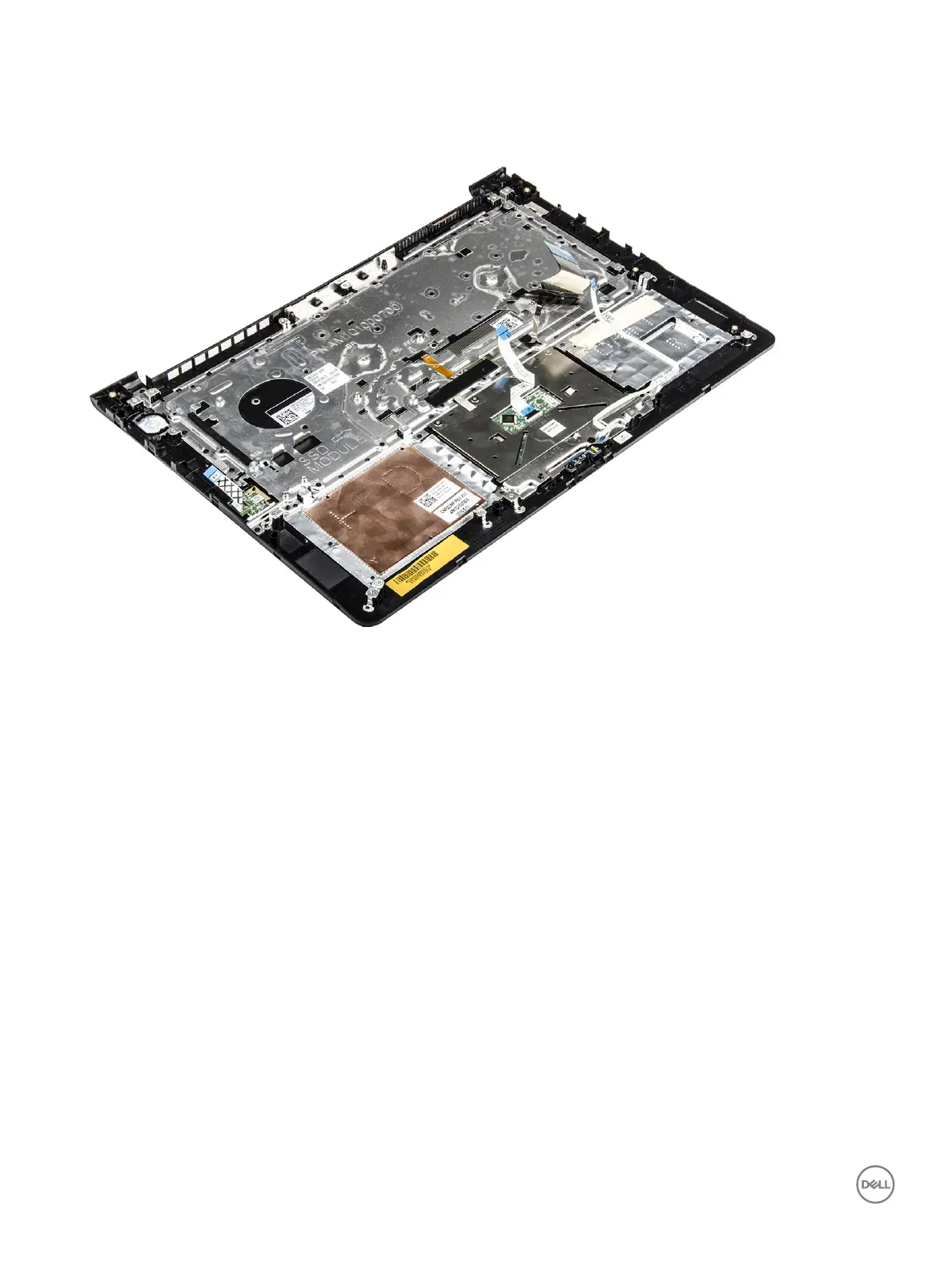

3 The palmrest can be removed after all other components have been disassembled.
Installing the palmrest
1 Align the palmrest into its slot on the computer chassis.
2 Install the:
a system board
b display assembly
c system fan
d LED board
e SSD
f heat sink
g memory
h WLAN card
i battery
j back cover
3 Follow the procedure in After working inside your computer
Removing the power connector
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a back cover
b battery
c WLAN card
44
Removing and installing components
