Dell PowerEdge R530 User Manual

NOTE: When installing, hot-swapping, or hot-adding a new PSU, wait for 15 seconds for the system to recognize the
PSU and determine its status. The PSU status indicator turns green to signify that the PSU is functioning properly.

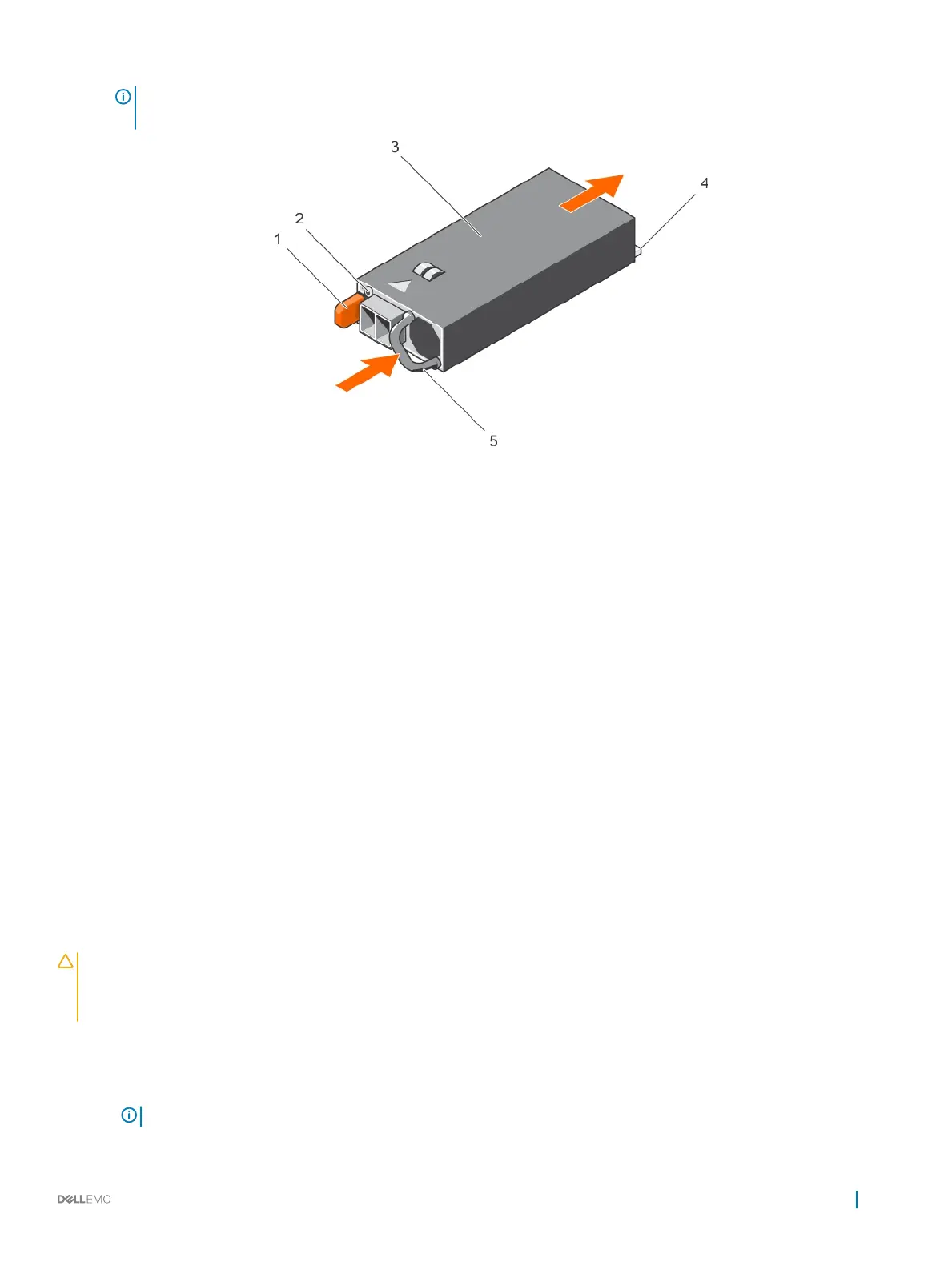

Figure 73. Installing a DC PSU
1 release latch 2 power supply status indicator
3 PSU 4 power connector
5 PSU handle
Next step
• Follow the procedure listed in the After working inside your system section.
Related link
Safety instructions
Before working inside your system
After working inside your system
Power interposer board
The power interposer board (PIB) is a board that connects the redundant power supply units (PSUs) to the system board. The PIB is only
supported in systems with redundant PSUs.
Removing the power interposer board
Prerequisites
CAUTION
: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that are
shipped with your product.
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your system section.
3 Remove the cooling shroud.
NOTE
: If applicable, close the expansion card latch on the cooling shroud to release the full length card.
4 If applicable, disconnect the power or data cables from expansion card(s).
Installing and removing system components
141

Dell PowerEdge R530 Specifications

General

Dell E-Value Code	PER530_EL0001A_Q4FY17_FG0002_BTP
HDD speed	7200 RPM
RAID levels	0, 1, 5, 10, 50
HDD interface	Serial ATA III
Hot-Plug support	Yes
Optical drive type	DVD±RW
Supported HDD sizes	3.5 \
Total storage capacity	1000 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Number of HDDs supported	8
Supported storage drive interfaces	SAS, Serial ATA III
Tcase	73 °C
Bus type	QPI
Stepping	R0
Scalability	2S
Processor code	SR2P0
Processor cache	15 MB
Processor cores	6
Processor model	E5-2603V4
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor codename	Broadwell
Motherboard chipset	Intel C610
Processor frequency	1.7 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	45 x 52.5 mm
Processor operating modes	64-bit
Embedded options available	No
Supported instruction sets	AVX 2.0
Thermal Design Power (TDP)	85 W
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 2011-v3 (Socket R)
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
Maximum internal memory supported by processor	1536 GB
Performance management	Dell OpenManage
Trusted Platform Module (TPM) version	1.2
Operating system installed	-
Compatible operating systems	Windows Server 2008 SP2 (x86/x64) Windows Server 2012 SP2 (x86/x64) Windows Server 2008 R2 (x64) Windows Server 2012 R2 (x64) Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere
Memory slots	12x DIMM
Internal memory	8 GB
Memory clock speed	2400 MHz
Maximum internal memory	384 GB
Memory layout (slots x size)	1 x 8 GB
Power supply	495 W
Power supply input frequency	50 - 60 Hz
Chassis type	Rack (2U)
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	4
PCI Express slots version	3.0
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Processor ARK ID	92993
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	668 mm
Width	482.4 mm
Height	86.8 mm
Weight	28200 g
