Removing memory modules
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that are
shipped with your product.
1 Follow the safety guidelines listed in the Safety instructions section.
2 Follow the procedure listed in the Before working inside your system section.
3 Remove the cooling shroud.
NOTE: If open, close the expansion card latch on the cooling shroud to release the full length card.
4 If connected, disconnect the cables from expansion card(s).
5 If installed, remove the expansion card riser.
WARNING: The memory modules are hot to touch for some time after the system has been powered down. Allow the memory
modules to cool before handling them. Handle the memory modules by the card edges and avoid touching the components or
metallic contacts on the memory module.
CAUTION: To ensure proper system cooling, memory module blanks must be installed in any memory socket that is not occupied.
Remove memory module blanks only if you intend to install memory modules in those sockets.
Steps
1 Locate the appropriate memory module socket.
CAUTION
: Handle each memory module only by the card edges, ensuring not to touch the middle of the memory
module or metallic contacts.
2 To release the memory module from the socket, simultaneously press the ejectors on both ends of the memory module socket.
3 Lift and remove the memory module from the system.

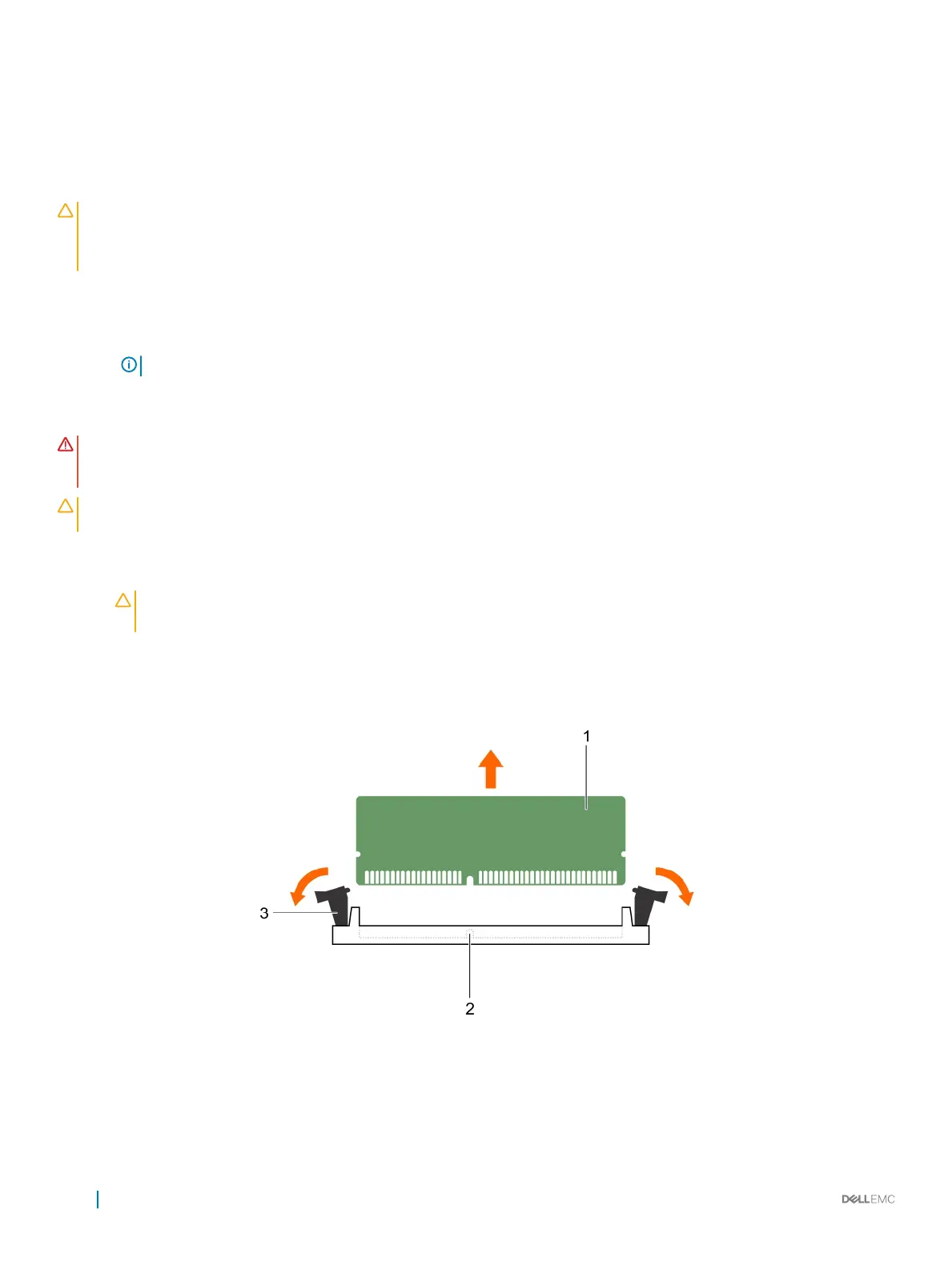

Figure 21. Removing the memory module
1
memory module 2 memory module socket
78 Installing and removing system components
