Coin cell battery
Removing coin-cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover

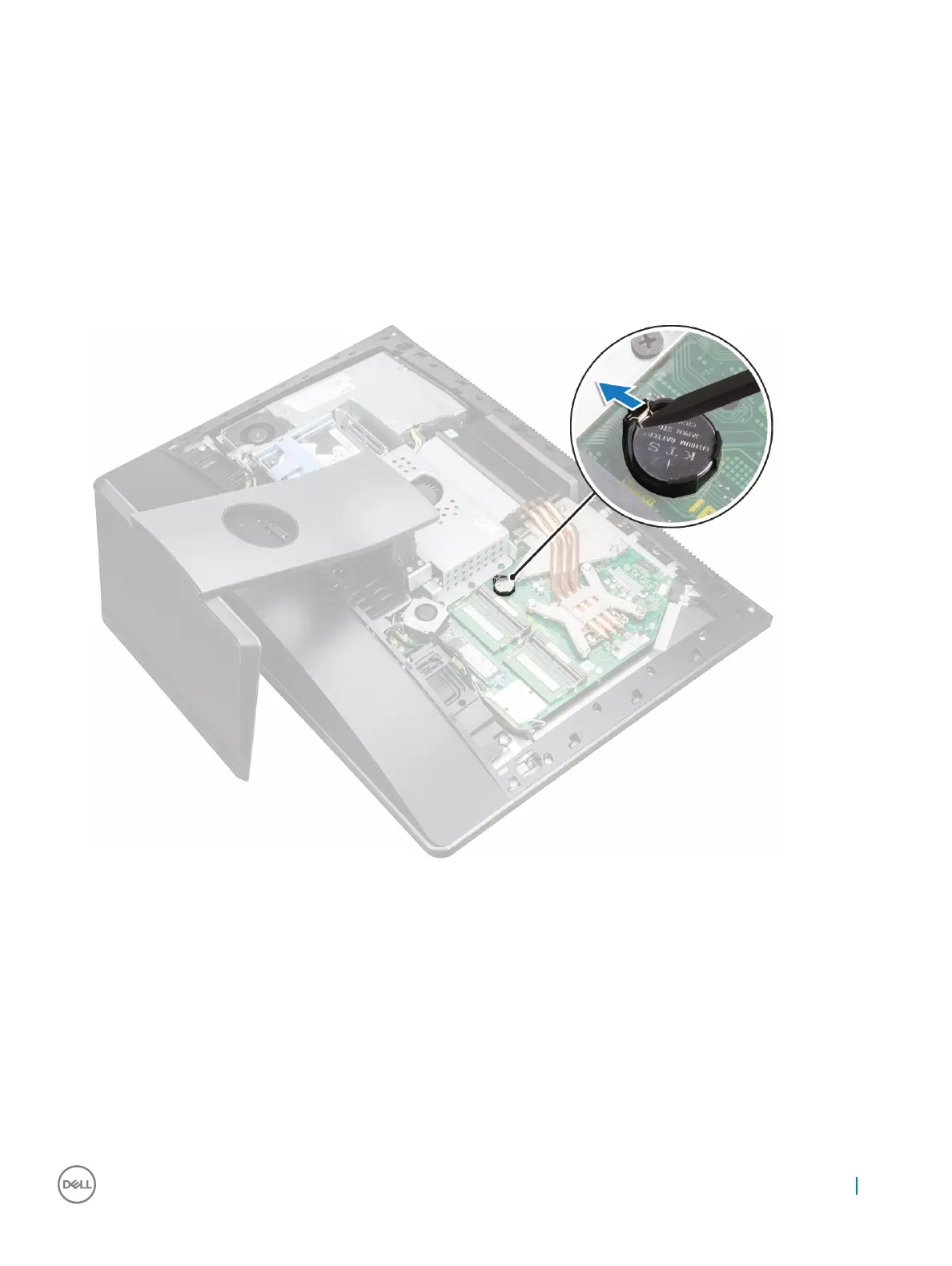

3 Using a plastic scribe, gently push the tab on the coin-cell battery socket until the battery pops up and then lift the coin-cell battery
o its slot on the system board.
Installing coin-cell battery
1 With the positive-side facing up, insert the coin-cell battery into the battery socket and press down the battery into place.
2 Install the:
a system-board shield
b back cover
c USB dongle-bay cover
3 Follow the procedure in After working inside your computer
Removing and installing components
25
