Installing microphone

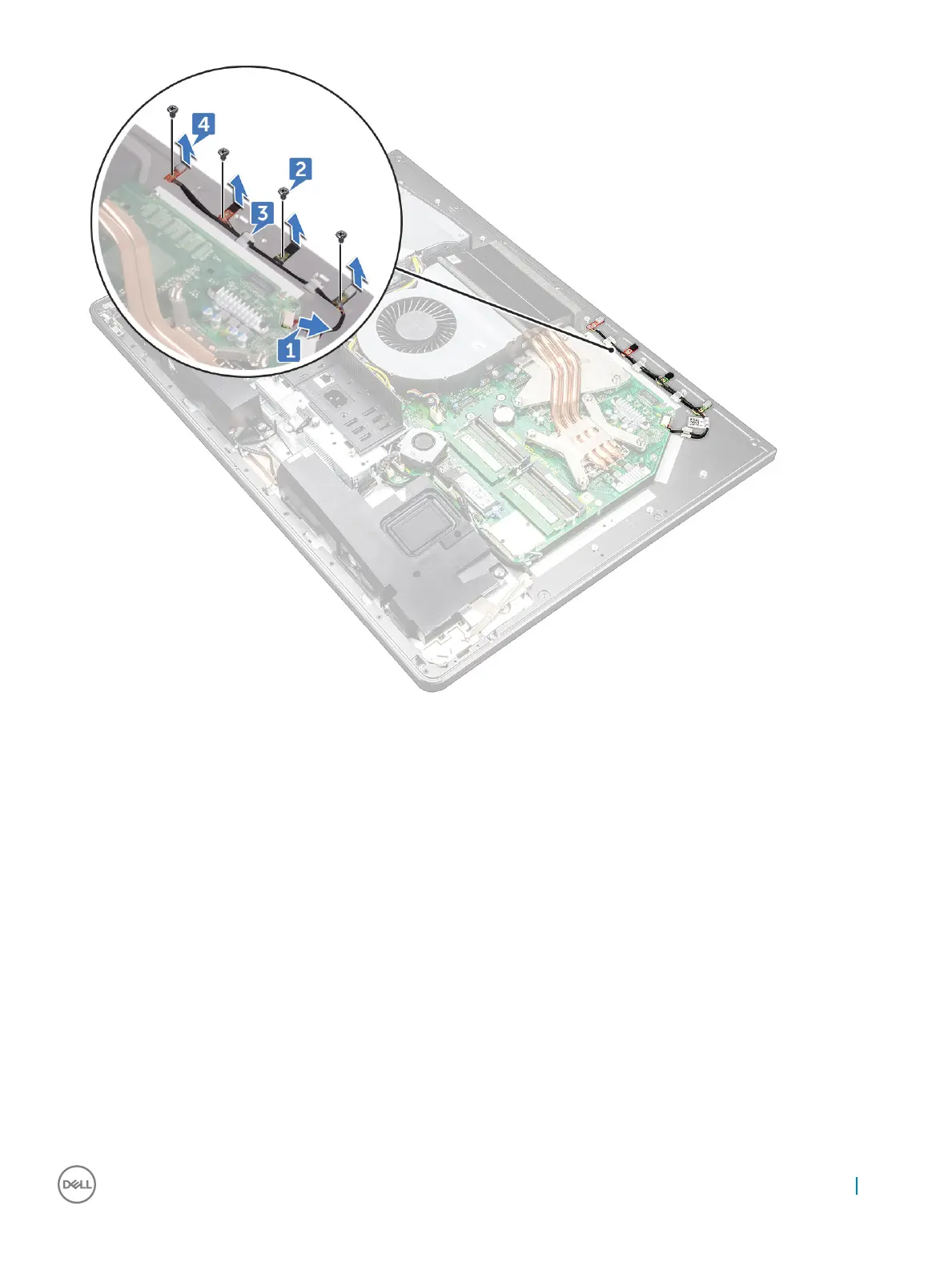

1 Align the microphone modules (4) with their slots on the middle frame.
2 Route the cable through the routing guides on the middle frame.
3 Replace the four screws (M2X2.2) that secure the microphone module to the middle frame.
4 Connect the microphone cable to the system board.
5 Install the:
a inner frame
b stand
c system-board shield
d back cover
e USB dongle-bay cover
6 Follow the procedure in After working inside your computer
