Dell Precision 5720 User Manual

b back cover
c system-board shield
d stand
e inner frame
f I/O panel
g speakers
h camera.
i middle frame
j speaker bezel

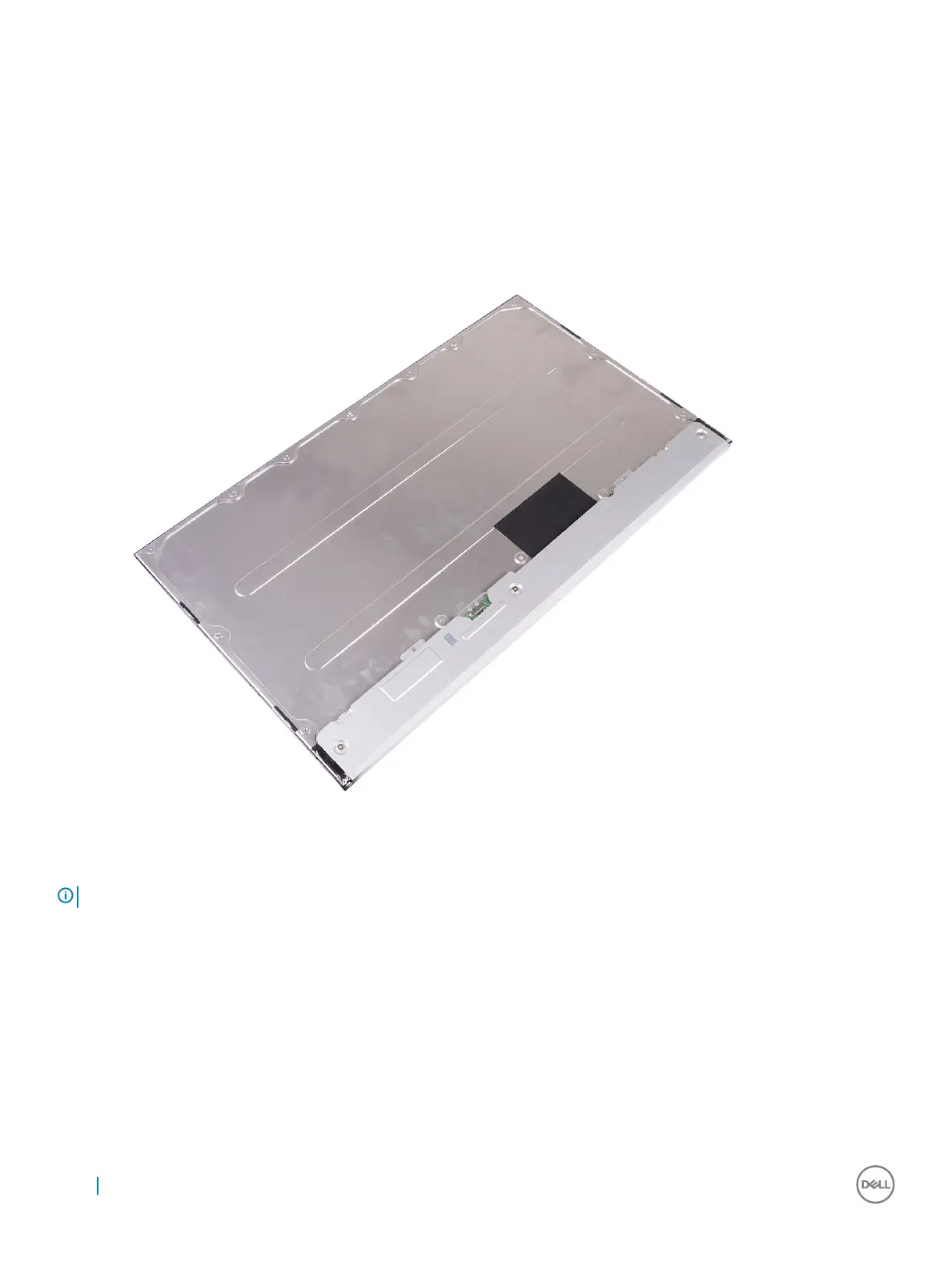

We are left with the display panel.
Installing display panel
NOTE
: The following steps are applicable only for non-touch systems.
1 Place the display panel over the speaker bezel.
68
Removing and installing components

Dell Precision 5720 Specifications

General

Chipset	Intel® C236 Chipset
Processors	Intel Core i7 or Xeon processors
Memory	Up to 64 GB DDR4
Storage	Up to 2 TB SSD
Graphics	NVIDIA Quadro P4000
Operating System	Windows 10 Pro
Ports Front	2 x USB 3.0
Ports Rear	4 x USB 3.0, 2 x USB 2.0
