Table 2. SMA 400 Front Panel Features
Front Panel Feature Description
Console Port RJ-45 port, provides access to console messages with serial connection
(115200 Baud). Provides access to command line interface (for future use).
USB/SSD Ports Provides access to external USB and SSD hard drive support.
Reset Button Provides access to SafeMode.
Power LED Indicates the SMA 400 is powered on.
Test LED Indicates the SMA 400 is in test mode.
Alarm LED Indicates a critical error or failure.
X3 Provides access to the X3 interface and to SMA resources.
X2 Provides access to the X2 interface and to SMA resources.
X1 Provides access to the X1 interface and to SMA resources.
X0 Default management port. Provides connectivity between the SMA 400 and
your gateway.
Table 3. SMA 400 Back Panel Features
Back Panel Feature Description
Exhaust fans Provides optimal cooling for the SMA 400 appliance.
Power supply plug Provides power connection using supplied power cord.

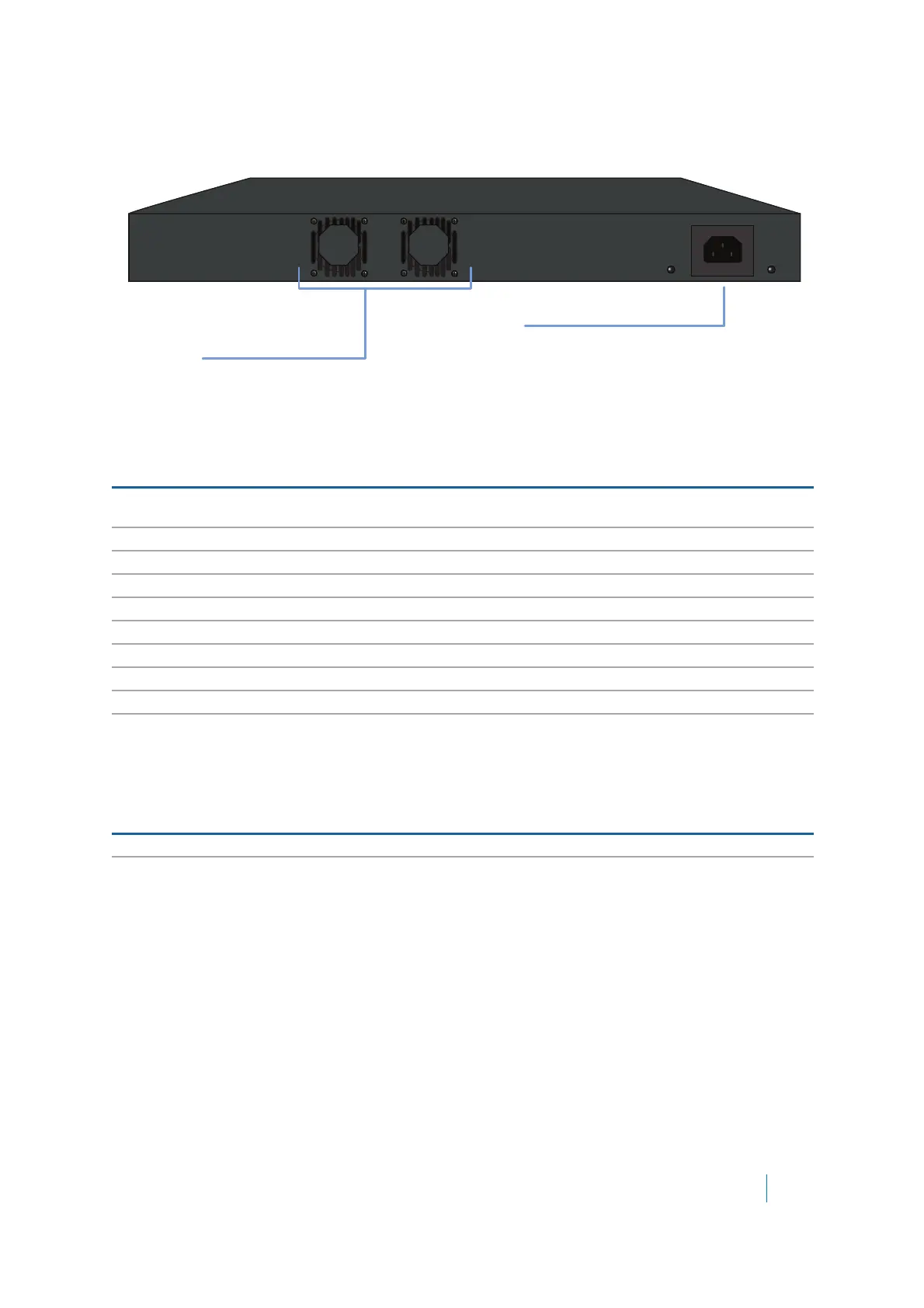

Rear Panel
Exhaust Fans
Provides optimal cooling for the
Dell SonicWALL SMA appliance
Power Supply Plug
Use the supplied power cord to provide
power to the appliance
