Dell Vostro 3480 - Base Cover Removal and Installation

Base cover
Removing the base cover
Prerequisites
1 Follow the procedure in before working inside your computer
2 Remove the SD memory card
Steps

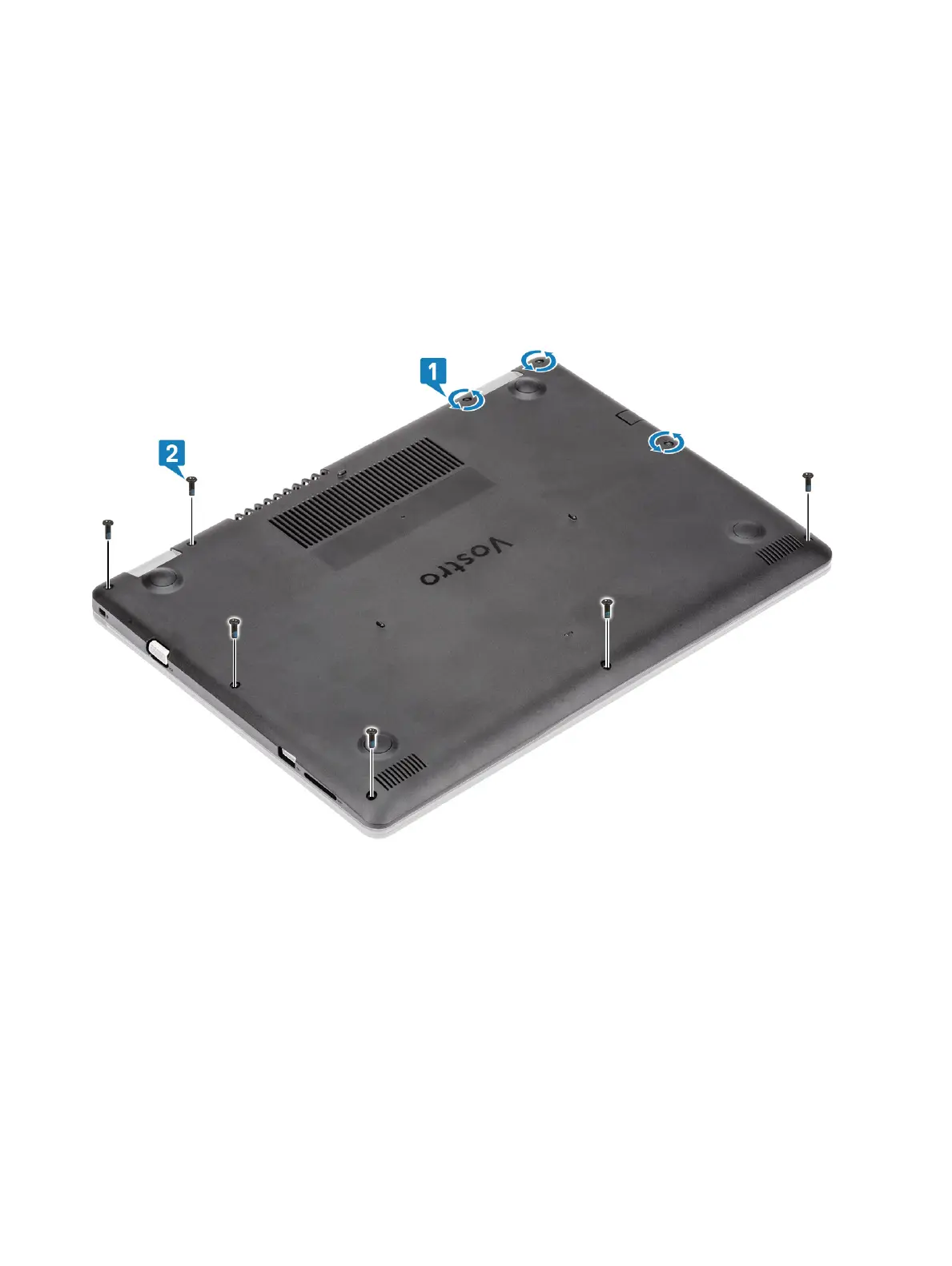

1 Loosen the three captive screws [1].
2 Remove the six (M2.5x6) screws that secure the base cover to the palmrest and keyboard assembly [2].
3 Pry the base cover from the top-right corner [1] and continue to open the right side of the base cover [2].
4 Lift the left side of the base cover and remove it o the system [3].
