Dell Vostro 3480 - Installing the Display Hinges

Installing the display hinges
Steps

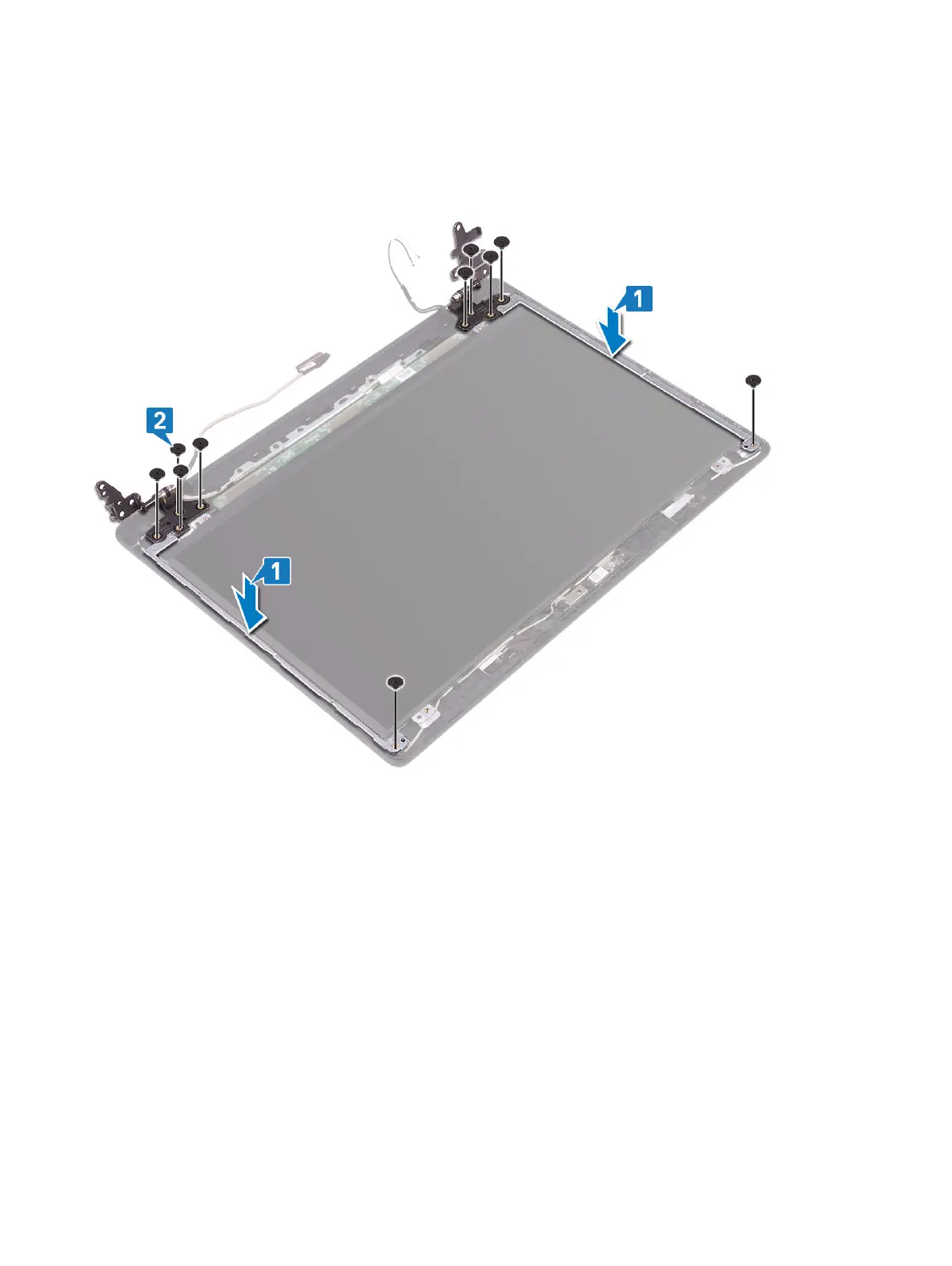

1 Align the screw holes on the hinges and brackets with the screw holes on the display back-cover and antenna assembly [1].
2 Replace the 10 (M2.5x2.5) screws that secure the hinges to the display back-cover and antenna assembly [2].
Next steps
1 Replace the display panel
2 Replace the camera
3 Replace the display bezel
4 Replace the display assembly
5 Replace the hard drive assembly
6 Replace the system fan
7 Replace the heatsink
8 Replace the SSD
9 Replace the WLAN
10 Replace the battery
11 Replace the base cover
12 Replace the SD memory card
13 Follow the procedure in after working inside your computer
82
Removing and installing components
