System fan
Removing the system fan
Prerequisites
1 Follow the procedure in before working inside your computer
2 Remove the SD memory card
3 Remove the base cover
4 Remove the battery
5 Remove the hard drive assembly
Steps

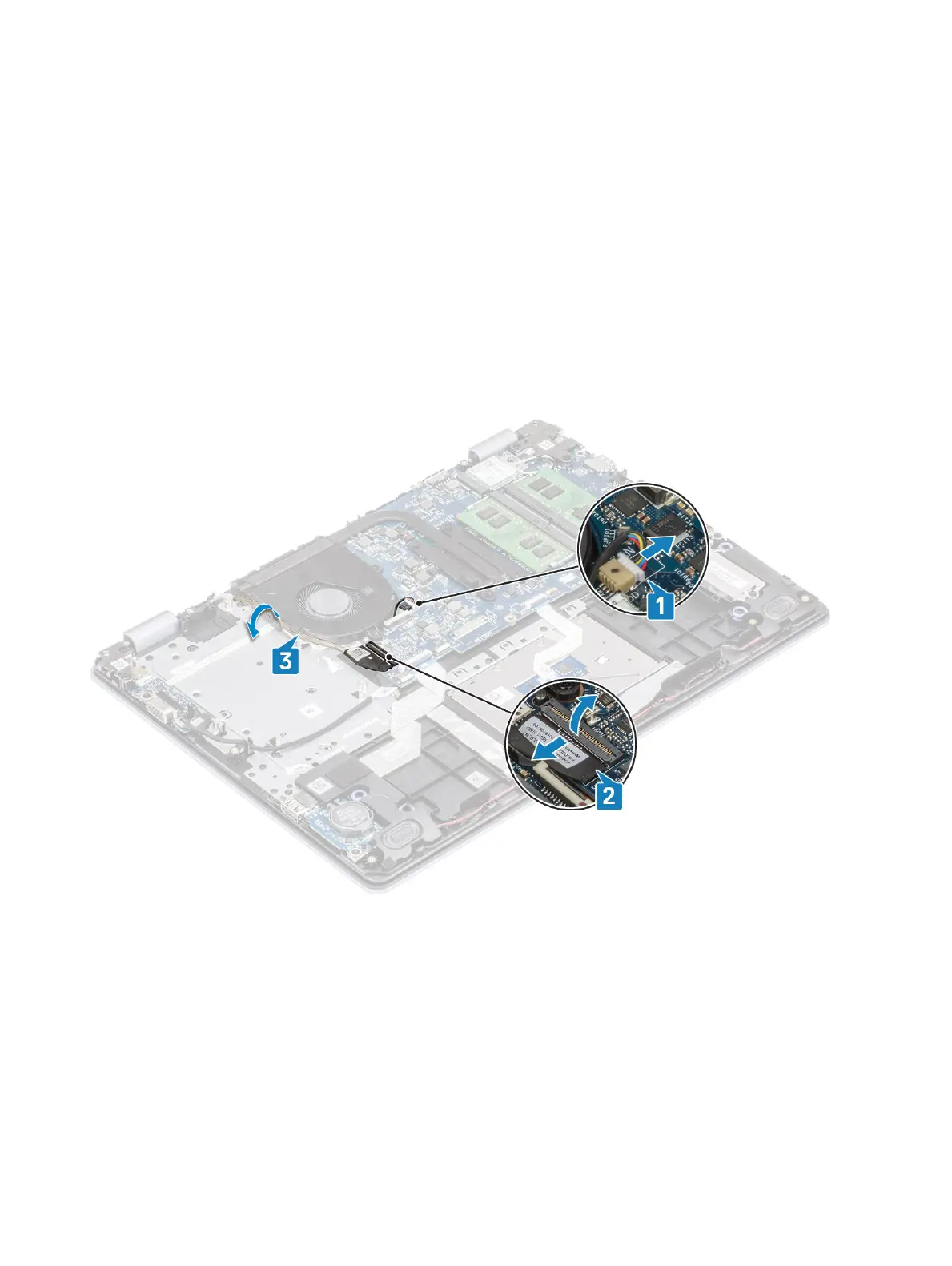

1 Disconnect the fan cable and display cable from the system board [1, 2].
2 Unroute the display cable from the routing guides on the fan [3].
3 Remove the two (M2x5) screws that secure the fan to the palm rest and keyboard board assembly [1].
4 Lift the fan o the palm rest and keyboard board assembly [2].
Removing and installing components
35
