Dell Vostro 3480 - Hard Drive; Removing the Hard Drive Assembly

Next steps

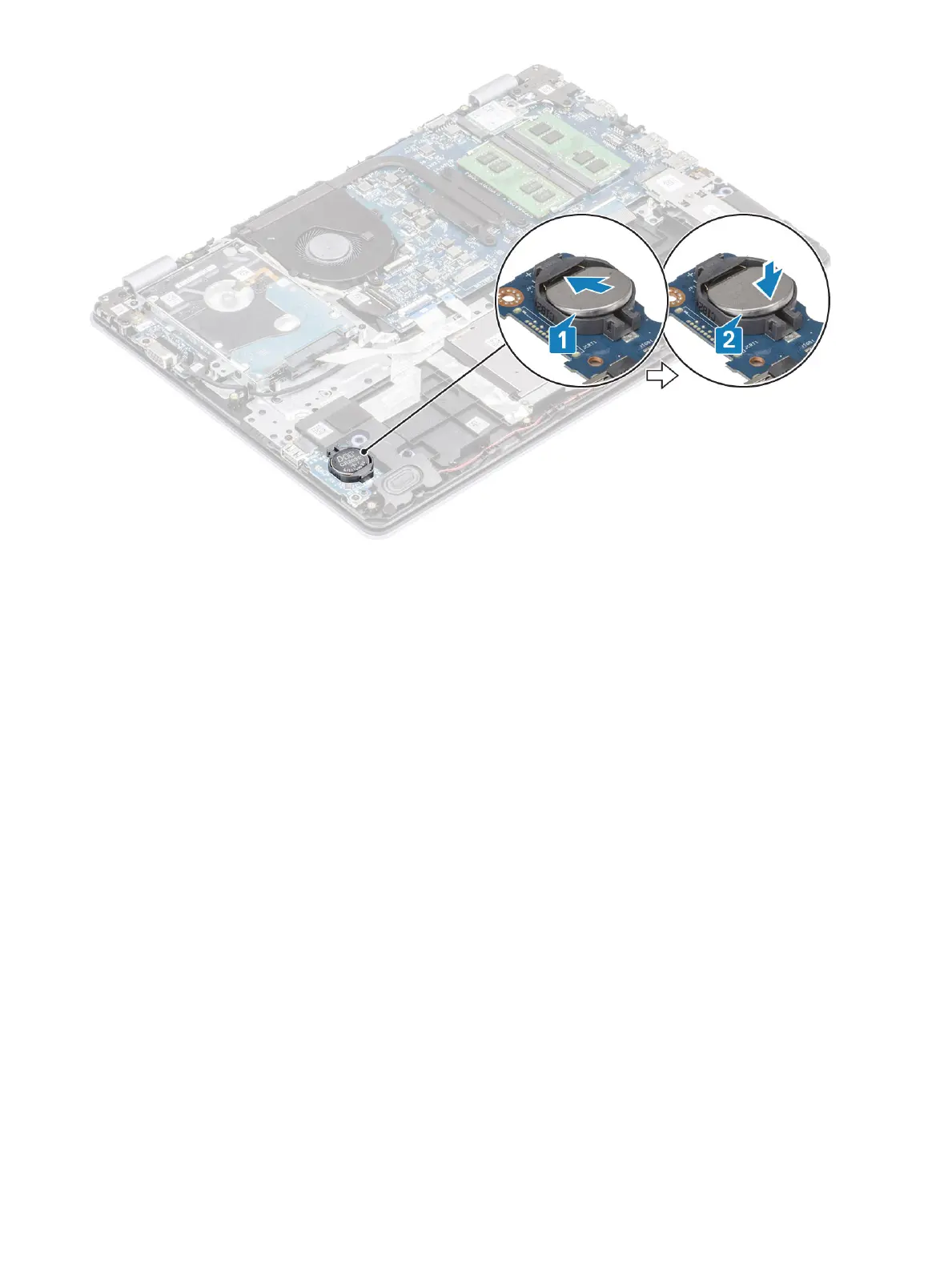

1 Replace the battery
2 Replace the base cover
3 Replace the SD memory card
4 Follow the procedure in after working inside your computer
Hard drive
Removing the hard drive assembly
Prerequisites
1 Follow the procedure in before working inside your computer
2 Remove the SD memory card
3 Remove the base cover
4 Remove the battery
Steps
1 Lift the latch and disconnect the hard drive cable from the system board [1].
2 Remove the four (M2x3) screws that secure the hard drive assembly to the palm rest and keyboard assembly [2].
3 Lift the hard drive assembly along with its cable o the palm rest and keyboard assembly [3].
Removing and installing components
31
