Installing the system board
Steps

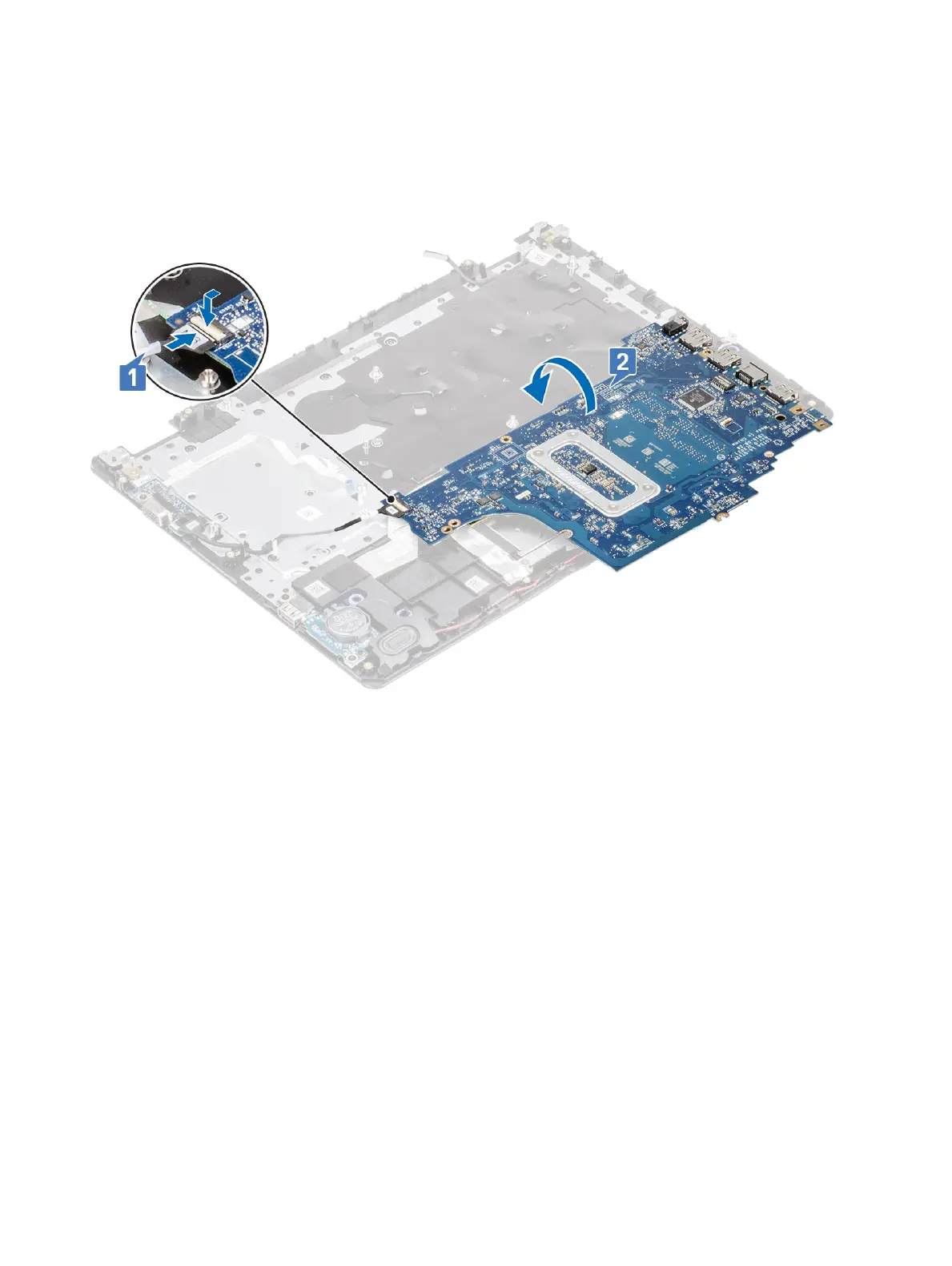

1 Connect the VGA daughterboard cable to the system board [1].
2 Flip and place the system board on the palmrest and keyboard assembly [2].
3 Align the screw hole on the system board with the screw hole on the palmrest and keyboard assembly [1].
4 Replace the single (M2x4) screw that secures the system board to the palmrest and keyboard assembly [2].
