Dell Vostro 3480 - Installing the Display Bezel

93 pages

To Next Page

To Previous Page

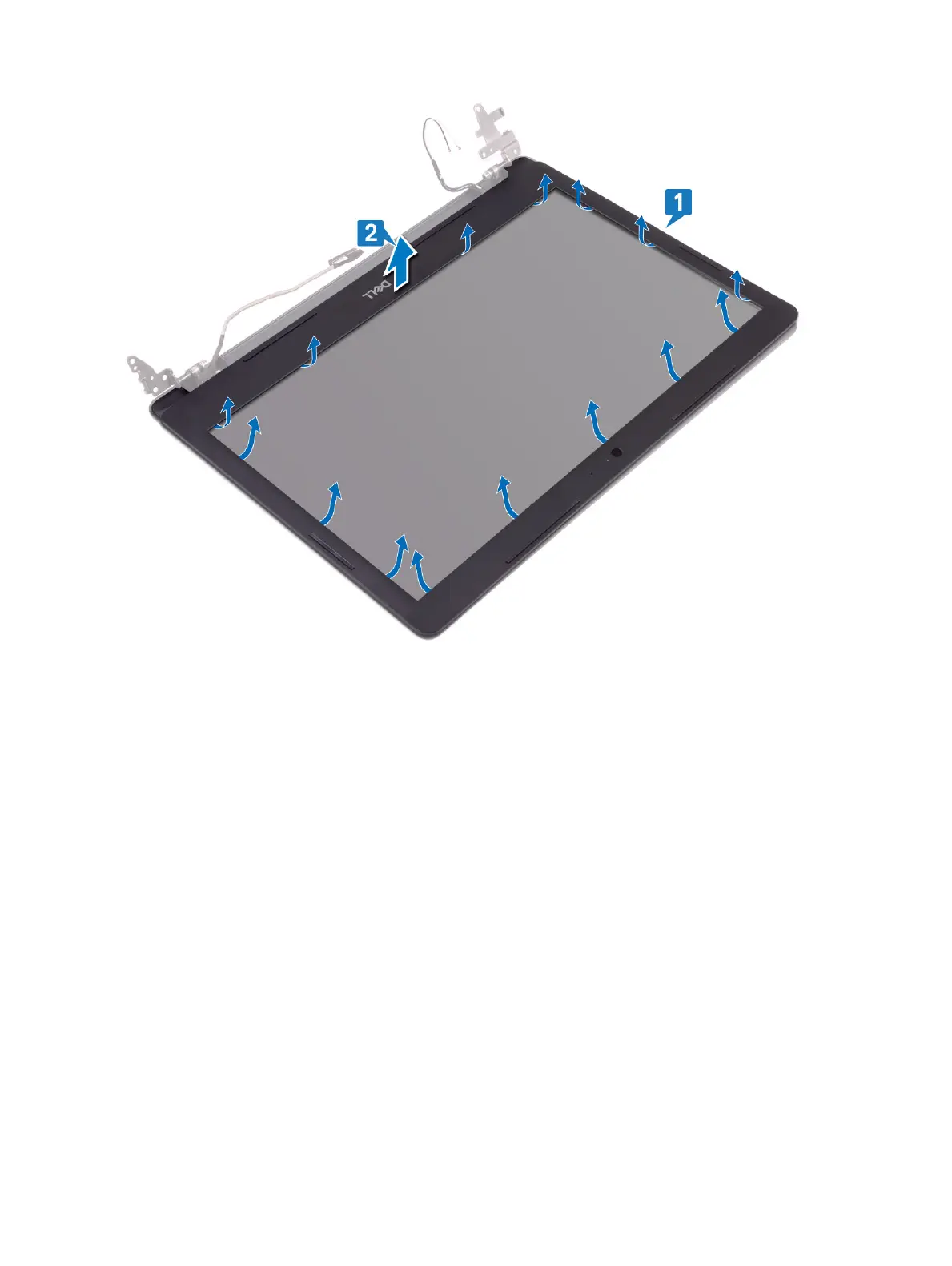

3 Lift the display bezel o the display back-cover and antenna assembly [2].

Installing the display bezel

Steps

1 Align the display bezel with the display back-cover and antenna assembly, and then gently snap the display bezel into place [1, 2].

Removing and installing components
