Dell Vostro 3480 - Installing the M.2 2230 Solid-State Drive

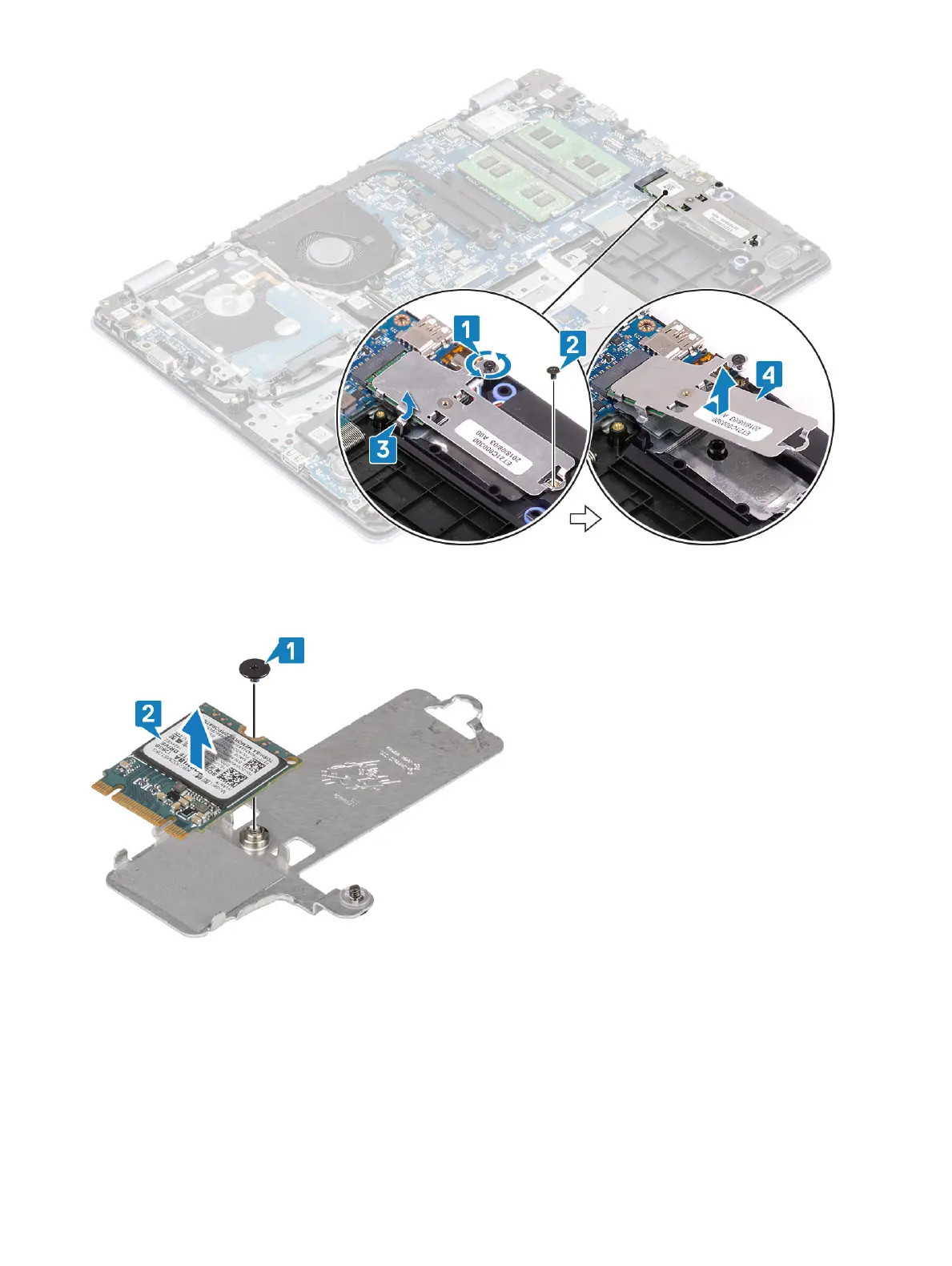

4 Turn the thermal plate over.
5 Remove the single (M2x2) screw that secures the solid-state drive to the thermal plate [1].
6 Lift the solid-state drive o the thermal plate [2].
Installing the M.2 2230 Solid-state drive
Steps
1 Place the solid-state drive into the slot of the thermal plate [1].
2 Replace the single (M2x2) screw that secures the solid-state drive to the thermal plate [2].
26
Removing and installing components
