Dell Vostro 3480 - Installing the Hard Drive Assembly

Installing the hard drive assembly
Steps

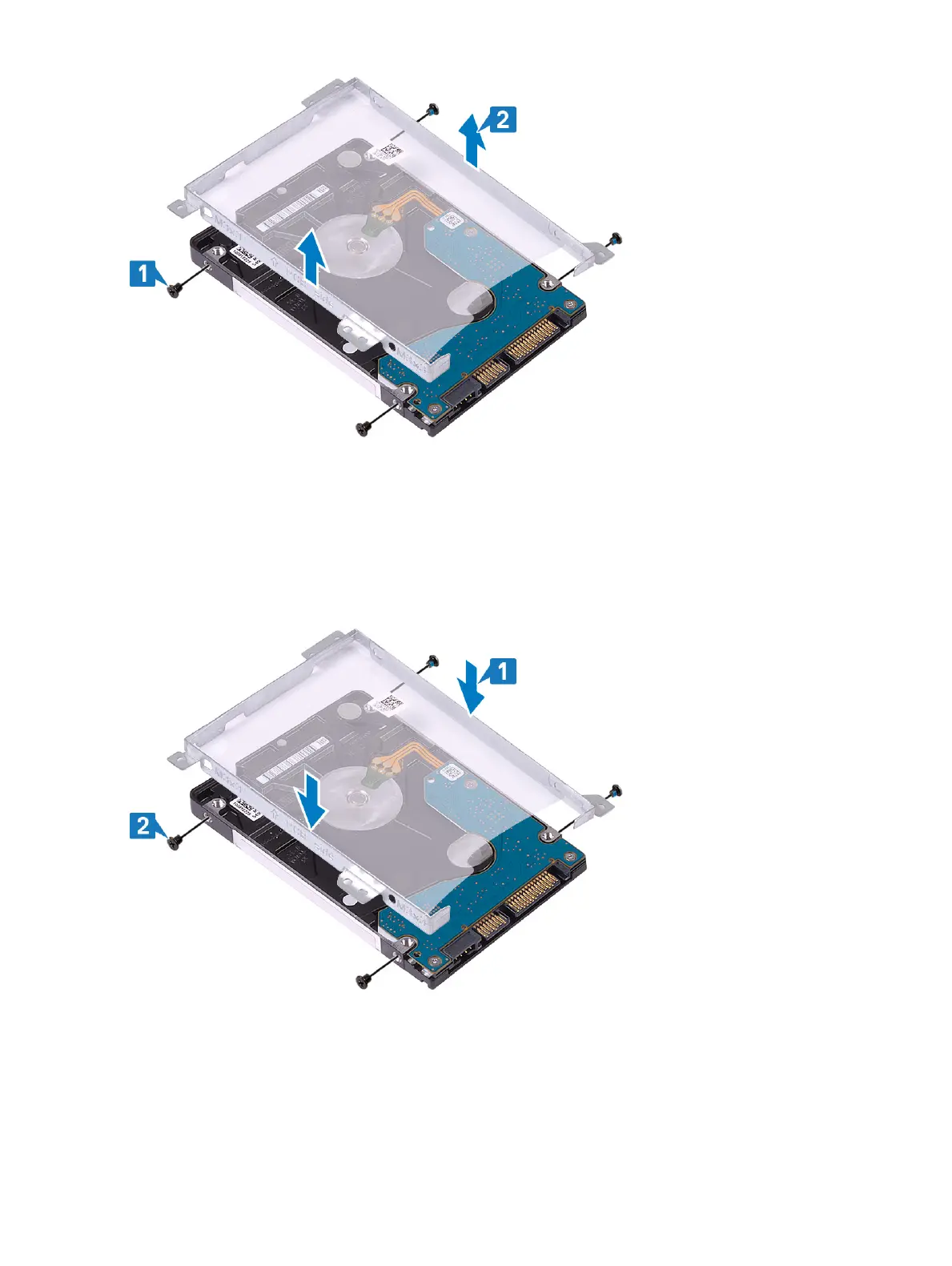

1 Align the screw holes on the hard drive bracket with the screw holes on the hard drive [1].
2 Replace the four (M3x3) screws that secure the hard drive bracket to the hard drive [2].
3 Connect the interposer to the hard drive assembly.
