Dell Vostro 3480 - Removing the Battery; Installing the Battery

Removing the battery
Prerequisites
1 Follow the procedure in before working inside your computer
2 Remove the SD memory card
3 Remove the base cover
Steps

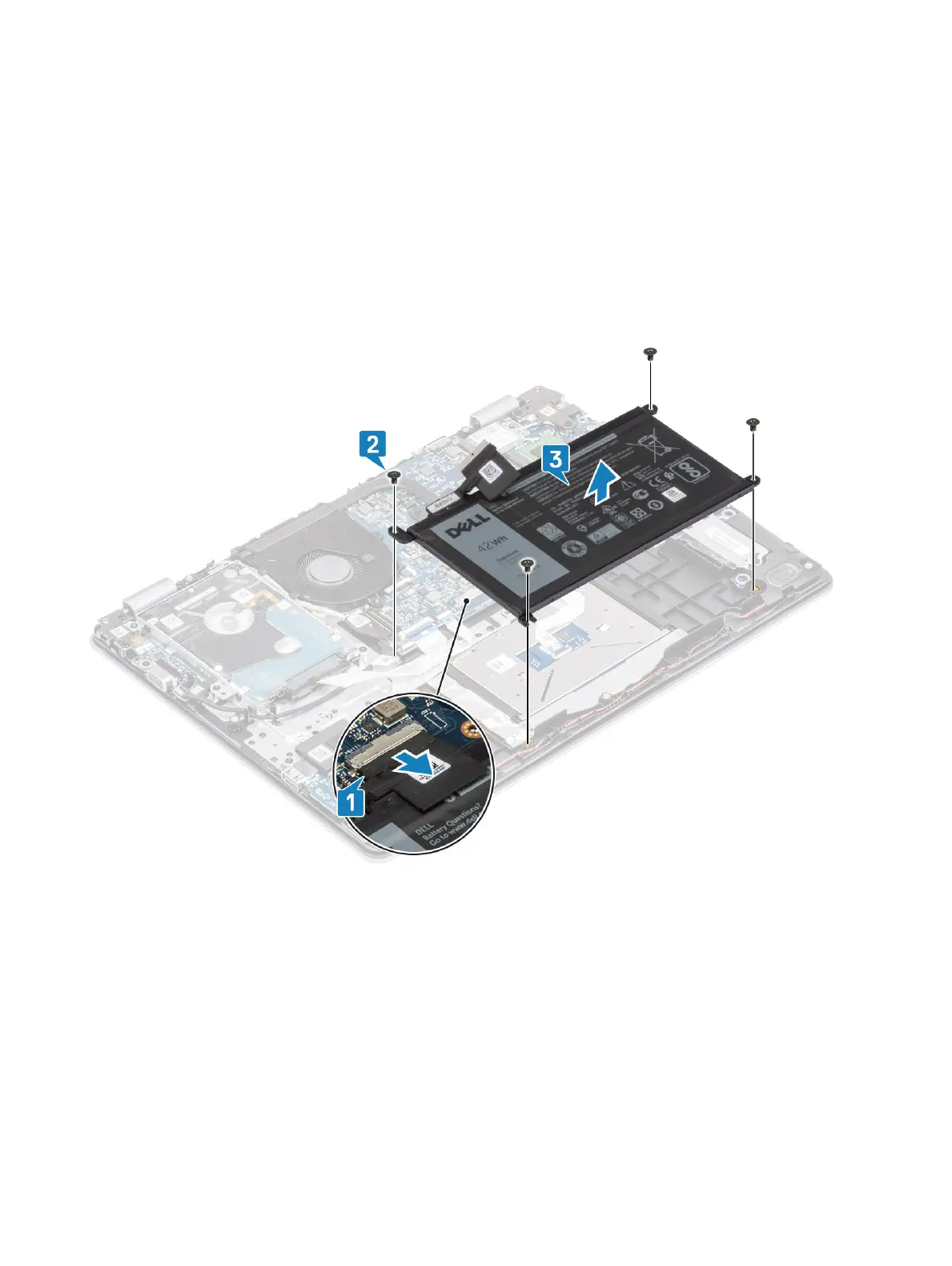

1 Disconnect the battery cable from the system board [1].
2 Remove the four (M2x3) screws that secure the battery to the palmrest and keyboard assembly [2].
3 Lift the battery o the palmrest and keyboard assembly [3].
Installing the battery
Steps
1 Align the screw holes on the battery with the screw holes on the palmrest and keyboard assembly [1].
2 Replace the four (M2x3) screws that secure the battery to the palmrest and keyboard assembly [2].
3 Connect the battery cable to the system board [3].
20
Removing and installing components
