Dell Vostro 3480 - Installing the Camera

2 Remove the SD memory card
3 Remove the base cover
4 Remove the battery
5 Remove the WLAN
6 Remove the SSD
7 Remove the hard drive assembly
8 Remove the system fan
9 Remove the heatsink
10 Remove the display assembly
11 Remove the display bezel
Steps

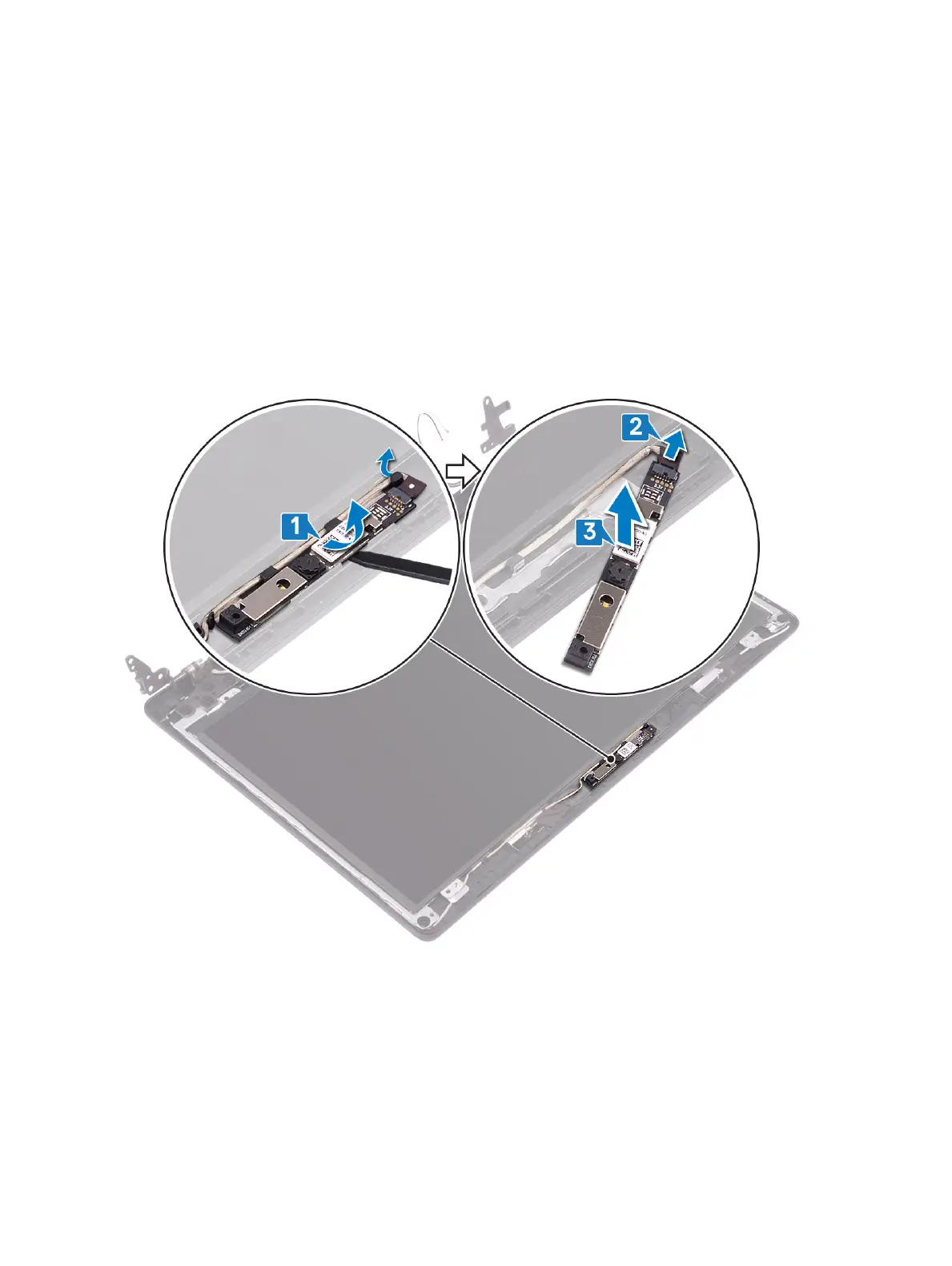

1 Using a plastic scribe, gently pry the camera o the display back-cover and antenna assembly [1].
2 Disconnect the camera cable from the camera module [2].
3 Lift the camera module from the display back-cover and antenna assembly [3].
Installing the camera
Steps
1 Connect the camera cable to the camera module [1].
2 Using the alignment post, adhere the camera module on the display back-cover and antenna assembly [2].
Removing and installing components
75
