Installing the IO board
Steps

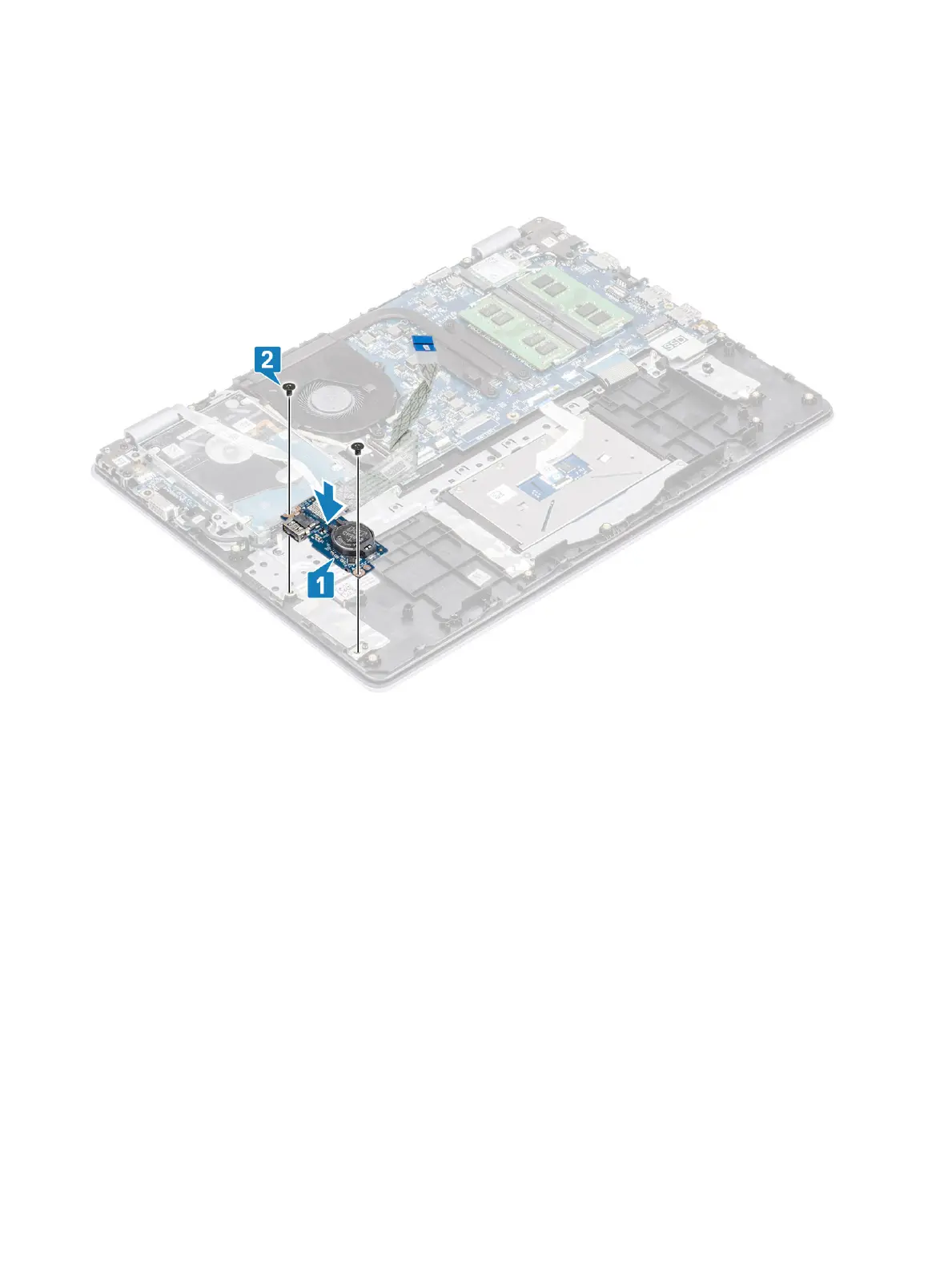

1 Using the alignment posts, place the I/O board on the palm rest and keyboard assembly [1].
2 Replace the two (M2x4) screws that secure the I/O board to the palm rest and keyboard assembly [2].
3 Adhere the I/O board cable to the palm rest and keyboard assembly [1].
4 Connect the I/O board cable to the system board and close the latch to secure the cable [2].
5 Connect the hard drive cable to the system board and close the latch to secure the cable [3].
48
Removing and installing components
