Dell Vostro 3480 - Installing the System Fan

Installing the system fan
Steps

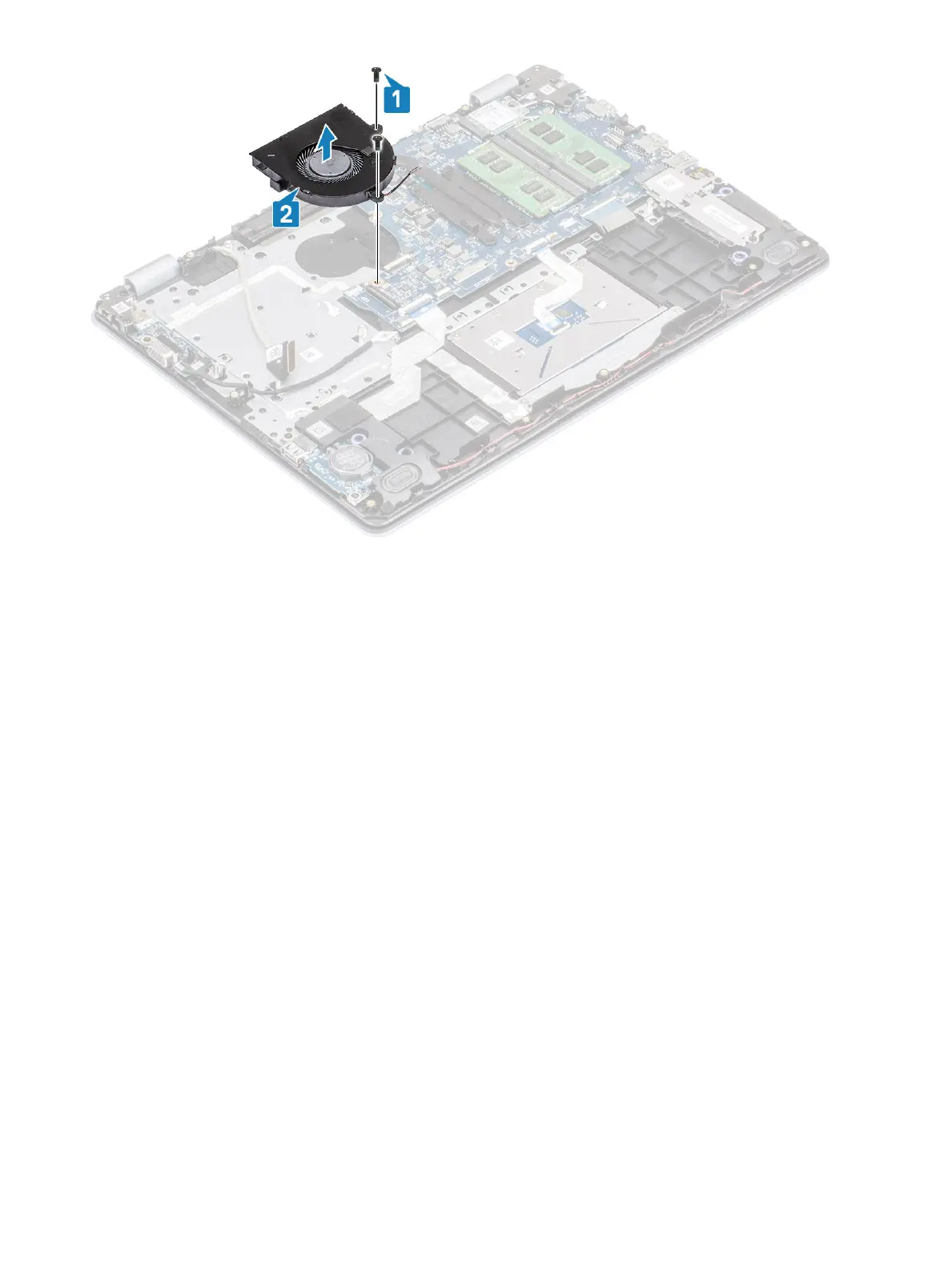

1 Align the screw holes on the fan with the screw holes on to the palm rest and keyboard board assembly [1].
2 Replace the two (M2x5) screws that secure the fan to the palm rest and keyboard board assembly [2].
36
Removing and installing components
