Dell Vostro 3480 - Removing the Display Hinges

Removing the display hinges
Prerequisites
1 Follow the procedure in before working inside your computer
2 Remove the SD memory card
3 Remove the base cover
4 Remove the battery
5 Remove the WLAN
6 Remove the SSD
7 Remove the hard drive assembly
8 Remove the system fan
9 Remove the heatsink
10 Remove the display assembly
11 Remove the display bezel
12 Remove the camera
13 Remove the display panel
Steps

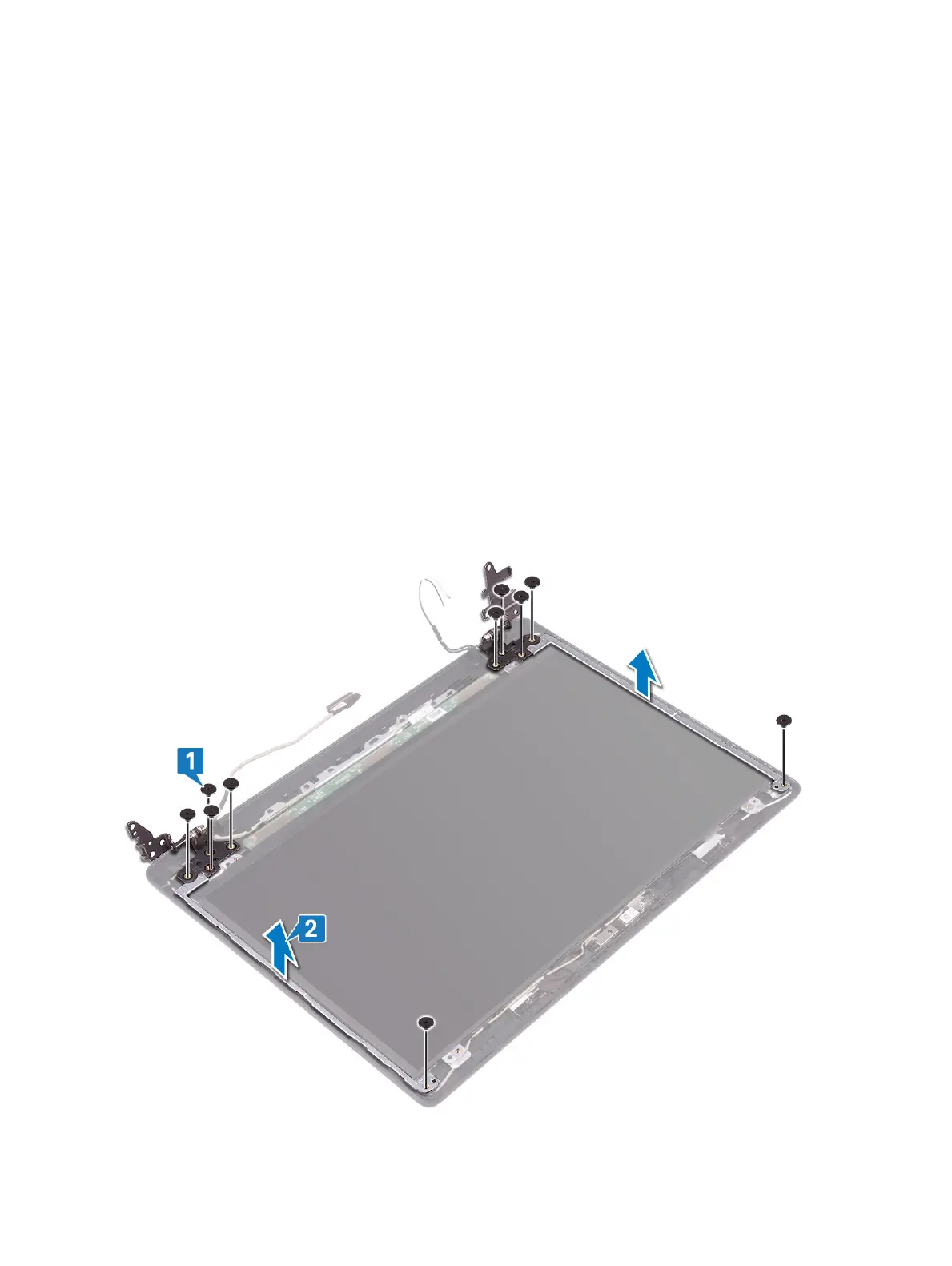

1 Remove the 10 (M2.5x2.5) screws that secure the hinges to the display back-cover and antenna assembly [1].
2 Lift the hinges and brackets o the display back-cover and antenna assembly [2].
