Dell Vostro 3480 - Installing the Power Adapter Port

Installing the power adapter port
Steps

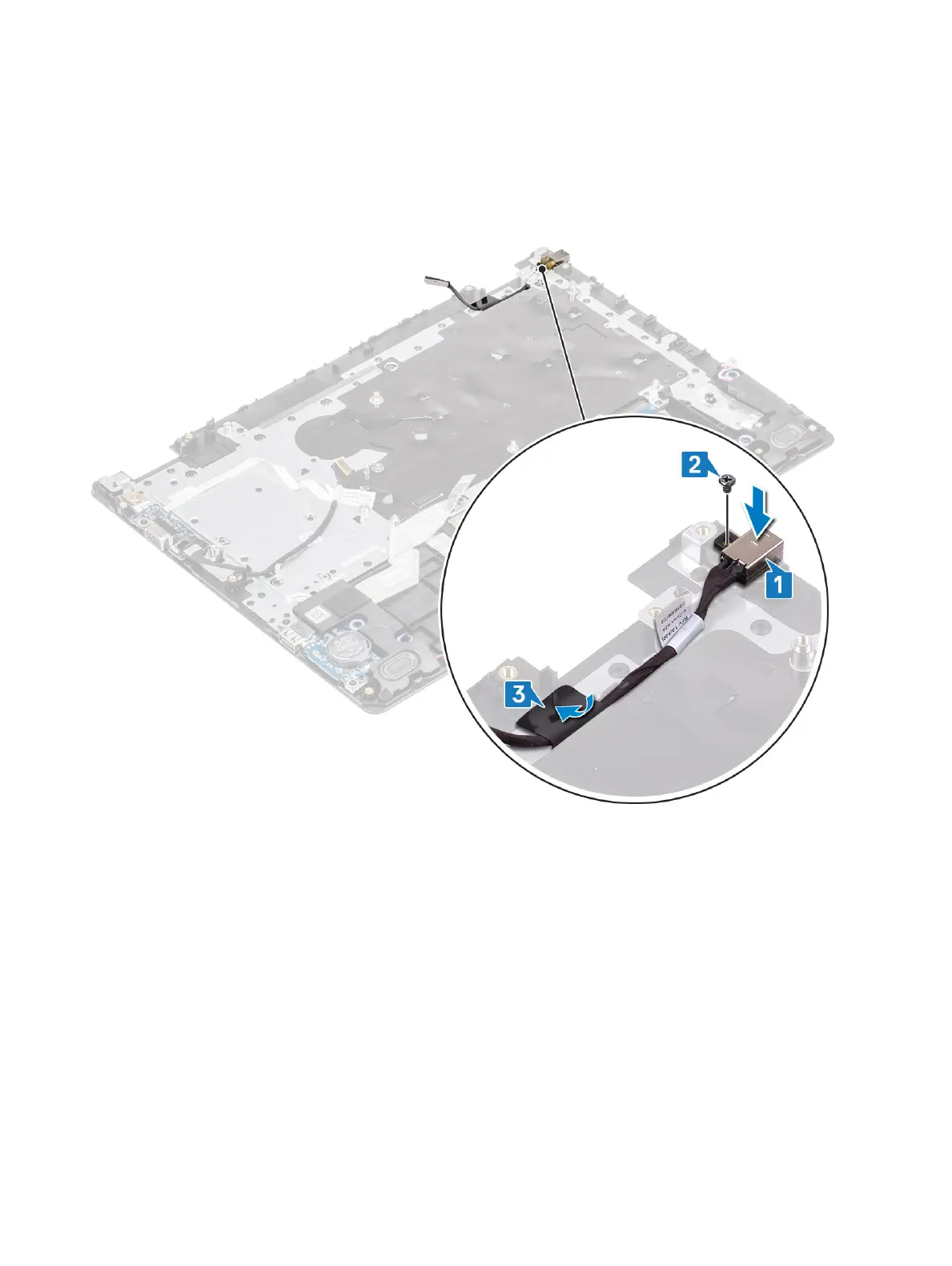

1 Place the power adapter port into the slot on the palmrest and keyboard assembly [1].
2 Replace the single (M2x3) screw that secures the power adapter port to the palmrest and keyboard assembly [2].
3 Ax the power adapter port cable to the palmrest and keyboard assembly [3].
Next steps
1 Remove the system board
2 Replace the power button board
3 Replace the display assembly
4 Replace the hard drive assembly
5 Replace the system fan
6 Replace the heatsink
7 Replace the SSD
8 Replace the memory
9 Replace the WLAN
10 Replace the battery
11 Replace the base cover
12 Replace the SD memory card
13 Follow the procedure in after working inside your computer
