Dell Vostro 3480 - Page 47

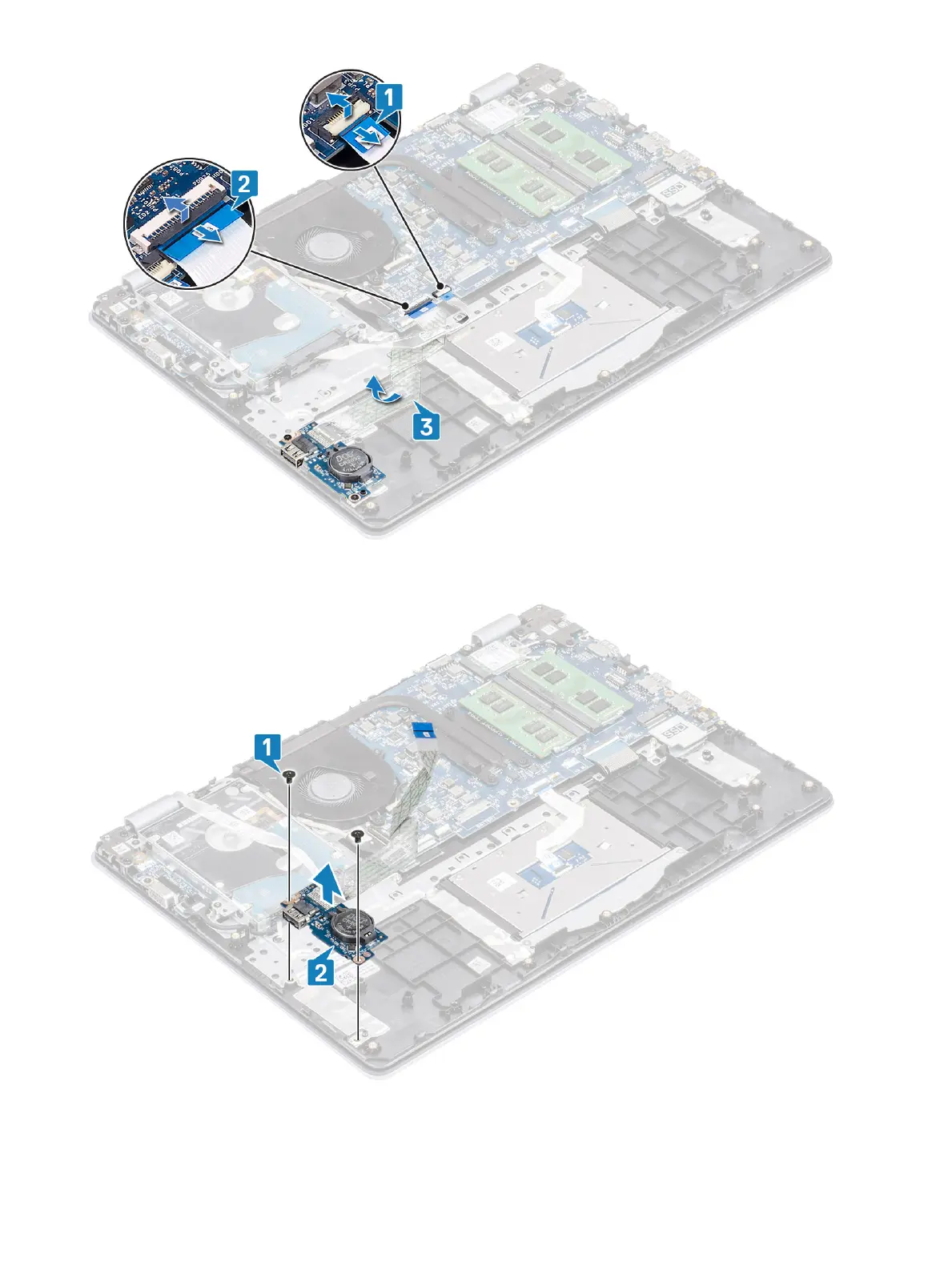

4 Remove the two (M2x4) screws that secure the I/O board to the palm rest and keyboard assembly [1].
5 Lift the I/O board, along with the cable, o the palm rest and keyboard assembly [2].
Removing and installing components
47
